Description

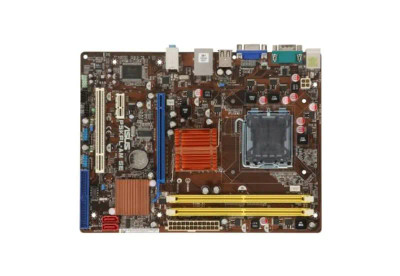

61-MIB8Q2-01 - Asus P5ql-Vm Epu/Cm5570 Desktop Motherboard S775
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
Micro ATX
Supported CPU(s)
Intel Core2 Extreme Processor, Intel Core2 Quad Processor, Intel Pentium Dual-Core Processor
Supported CPU Technologies
Hyper-Threading Technology
Chipset
Intel G43 Express
South Bridge Chipset
Intel ICH10
Number of Memory Slot(s)
4
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC2-5300 (DDR2-667), PC2-6400 (DDR2-800), PC2-8500 (DDR2-1066)
Maximum Installed Memory
16 GB
Expansion Slots
PCI-E 2.0 x1, PCI-E 2.0 x16
Expansion Slots Details
1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1, 2 x PCI
Storage Controller
SATA 3.0 Gbps
Audio Controller
Realtek ALC887
Network
Gigabit Ethernet
Connectors/Ports
Audio-In, Chassis Fan Connector, CPU Fan Connector, D-Sub, DVI, PS/2 Keyboard, PS/2 Mouse, RJ-45, USB 1.1, USB 2.0
Connectors/Ports Details
Back Panel I/O Ports, 1 x DVI, 1 x D-Sub, 1 x PS/2 Keyboard, 1 x HDMI, 1 x S/PDIF Out (optical), 1 x LAN(RJ45) port, 6 x USB 2.0/1.1, 8 -Channel Audio I/O, , Internal I/O Connectors, 3 x USB connectors (6ports), 1 x IDE connector, 1 x CPU Fan connect
