Description

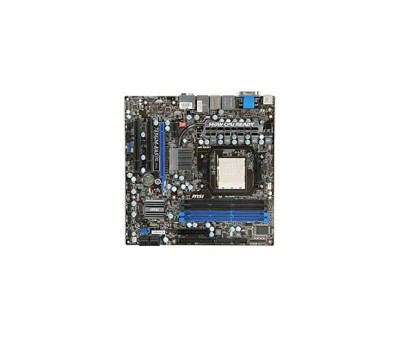

7596-003 - MSI Socket AM3 AMD 785G/SB710 Chipset Micro-ATX System Board Motherboard Supports PHENOM II/ATHLON II DDR3 4x DIMM
Details
Brand
MSI
Weight
8.00 LBS
Chipset Manufacturer
AMD
Total Processor Supported
1
Processor Socket
Socket AM3 PGA-941
Processor Supported
Athlon II X2, Phenom II X4, Phenom II X3, Phenom II X2, Phenom II
Number of Memory Slots
4
Maximum Memory
16 GB
Memory Speed Supported
1.33 GHz, 1.07 GHz, 800 MHz
Memory Technology
DDR3 SDRAM
Controller Type
Floppy Controller, Serial ATA/300, Ultra ATA/133 (ATA-7)
RAID Supported
Yes
RAID Levels
0, 1, 0+1, JBOD
Onboard Video
On-board Video Chipset
Audio Channels
7.1
Gigabit Ethernet
Yes
Number of Total Expansion Slots
4
Total Number of PCI Express Slots
2
Number of PCI Express x1 Slots
1
Number of PCI Express x16 Slots
1
Total Number of USB Ports
6
S/PDIF
Yes
VGA
Yes
HDMI
Yes
DVI
Yes
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
3
Onboard S/PDIF Header
Yes
Form Factor
Micro ATX
Width
9.6
Depth
9.6
Environmentally Friendly
Yes
Environmental Certification
WEEE
