Description

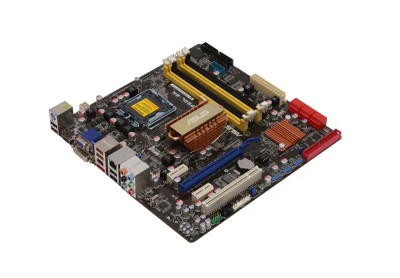

90-MIB650-G0EAY0KZ - Asus P5QL-CM Socket LGA775 Intel G43 + ICH10 Chipset Micro-ATX System Board Motherboard Supports Core 2 Quad/ Core 2 Extreme/ Core 2 Duo/ Pentium D/ Pentium 4/Celeron Series DDR2 2x DIMM
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
Micro ATX
CPU Socket Type
LGA 775
Supported CPU(s)
Intel Celeron Dual-Core Processor, Intel Celeron Processor, Intel Core2 Duo Desktop Processor, Intel Core2 Extreme Processor, Intel Core2 Quad Processor, Intel Pentium Dual-Core Processor
Supported CPU Technologies
Hyper-Threading Technology
Chipset
Intel Q43 Express
South Bridge Chipset
Intel ICH10
Number of Memory Slot(s)
2
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC2-5400 (DDR2-667), PC2-6400 (DDR2-800), PC2-8500 (DDR2-1066)
Maximum Installed Memory
8 GB
Expansion Slots
PCI, PCI-E 2.0 x1, PCI-E 2.0 x16
Expansion Slots Details
1 x PCIe 2.0 x16, 1 x PCIe x1, 2 x PCI
Storage Controller
SATA 3.0 Gbps
Audio Controller
VIA VT1708B
Network
Gigabit Ethernet
Connectors/Ports
DisplayPort, DVI, PS/2 Keyboard, RJ-45, USB 1.1, USB 2.0, VGA
Connectors/Ports Details
Back Panel I/O Ports, 1 x PS/2 Keyboard, 1 x DVI, 1 x DP, 1 x VGA, 1 x RJ45 port, 6 x USB 2.0/1.1, 8-channel Audio I/O, , Internal I/O Connectors, 3x USB connector (6ports), 1 x CPU Fan connector, 1 x Chassis Fan connector, 1 x Power Fan connector, F
Warranty Information
8
