Description

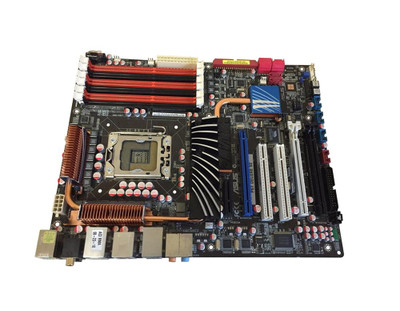

90-MIB7U0-G0EAY00Z - Asus P6T Deluxe V2 Socket LGA 1366 Intel X58 + ICH10R Chipset ATX System Board Motherboard Supports Core i7 Extreme Edition / Core i7 Series DDR3 6x DIMM
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
LGA 1366
Supported CPU(s)
Intel Core i7 Processor, Intel Core i7 Processor Extreme Edition
Chipset
Intel X58 Express
South Bridge Chipset
Intel ICH10R
Number of Memory Slot(s)
6
Number of Memory Channel(s)
3
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-14900 (DDR3-1866), PC3-16000 (DDR3-2000), PC3-8500 (DDR3-1066)
Maximum Installed Memory
24 GB
Expansion Slots
PCI-E 2.0 x16, PCI-E x1, PCI-E x4
Expansion Slots Details
3 x PCIe 2.0 x16 (at x16/x16/x1 or x16/x8/x8 mode), 1 x PCIe x4, 2 x PCI
Storage Controller
SATA 3.0 Gbps
Audio Controller
Analog Devices AD2000B
Network
Gigabit Ethernet
Connectors/Ports
Chassis Fan Connector, CPU Fan Connector, PS/2 Keyboard, PS/2 Mouse, RJ-45
Connectors/Ports Details
Back Panel I/O Ports, 1 x PS/2 Keyboard/ Mouse combo port, 1 x S/PDIF Out (Coaxial + Optical), 1 x External SATA, 1 x IEEE1394a, 2 x RJ45 port, 8 x USB 2.0/1.1, 8-channel Audio I/O, , Internal I/O Connectors, 3 x USB connectors support additional 6 U
