Description

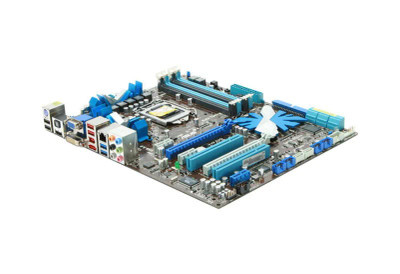

90-MIBBD0-G0EAY00Z - Asus P7H57D-V EVO Socket LGA1156 Intel H57 Express Chipset ATX System Board Motherboard Supports Pentium/ Core i7 / Core i5 / Core i3 Series DDR3 4x DIMM
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
LGA 1156
Supported CPU(s)
Intel Celeron Processor, Intel Core i3 Processor, Intel Core i5 Processor, Intel Core i7 Processor, Intel Pentium Processor
Supported CPU Technologies
Intel Turbo Boost Technology
Chipset
Intel H57 Express
Number of Memory Slot(s)
4
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-8500 (DDR3-1066)
Maximum Installed Memory
16 GB
Expansion Slots
PCI-E 2.0 x1, PCI-E 2.0 x16
Expansion Slots Details
2 x PCIe 2.0 x16 (single at x16 or dual at x8/x8 mode), 1 x PCIe 2.0 x1 (5GT/s, blue slot), 2 x PCIe 2.0 x1 (2.5GT/s, gray slots), 2 x PCI
Storage Controller
SATA 3.0 Gbps, SATA 6.0 Gbps
Audio Controller
Realtek ALC889
Network
Gigabit Ethernet
Connectors/Ports
Chassis Fan Connector, CPU Fan Connector, D-Sub, HDMI, PS/2 Keyboard, RJ-45, USB 1.1, USB 2.0
Connectors/Ports Details
Back Panel I/O Ports, 1 x D-Sub, 1 x HDMI, 1 x S/PDIF Out (Optical), 1 x IEEE 1394a, 1 x LAN(RJ45) port, 8 -Channel Audio I/O, 1 x PS/2 Keyboard (Purple), 1 x External SATA 3Gb/s, 2 x USB 3.0/2.0 ports (blue), 4 x USB 2.0/1.1, , Internal I/O Connecto
