Description

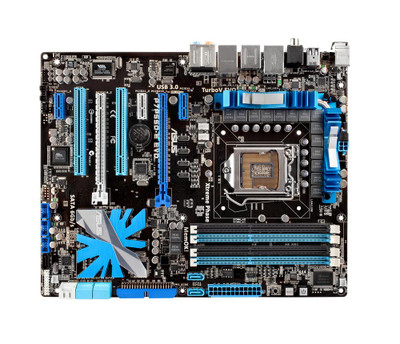

90-MIBBR0-G0EAY00Z - Asus P7P55D-E EVO Socket LGA1156 Intel P55 Express Chipset ATX System Board Motherboard Supports Core i7 / Core i5 Series DDR3 4x DIMM
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
LGA 1156
Supported CPU(s)
Intel Core i3 Processor, Intel Core i5 Processor, Intel Core i7 Processor
Chipset
Intel P55 Express
Number of Memory Slot(s)
4
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-8500 (DDR3-1066)
Maximum Installed Memory
16 GB
Expansion Slots
PCI, PCI-E 2.0 x1, PCI-E 2.0 x16
Storage Controller
SATA 3.0 Gbps
Network
Gigabit Ethernet
Connectors/Ports
Audio-In, Audio-Out, COM, PS/2 Keyboard, PS/2 Mouse, RJ-45, USB 1.1, USB 2.0, USB 3.0
Connectors/Ports Details
Back Panel I/O Ports, 1 x PS/2 Keyboard (Purple), 1 x PS/2 mouse port (Green), 1 x Coaxial S/PDIF Output , 1 x Optical S/PDIF Output , 1 x Clear CMOS switch , 1 x IEEE1394a , 1 x eSATA port , 2 x RJ45 ports , 2 x USB 3.0/2.0 ports (Blue), 6 x USB 2.0
