Description

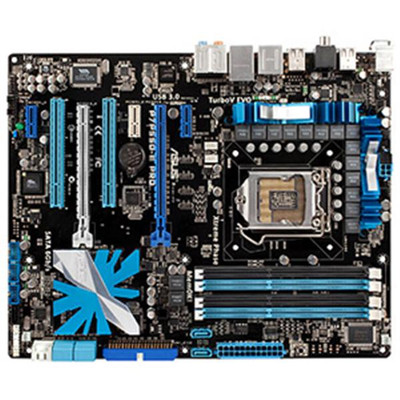

90-MIBBS0-G0AAY00Z - Asus P7P55D-E PRO Socket LGA 1156 Intel P55 Express Chipset Core i7 / i5 / i3 Processors Support DDR3 4x DIMM 6x SATA 3.0Gb/s ATX
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
LGA 1156
Supported CPU(s)
Intel Core i3 Processor, Intel Core i5 Processor, Intel Core i7 Processor
Supported CPU Technologies
Intel Turbo Boost Technology
Chipset
Intel P55 Express
Number of Memory Slot(s)
4
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-8500 (DDR3-1066)
Maximum Installed Memory
16 MB
Expansion Slots
PCI-E 2.0 x1, PCI-E 2.0 x16
Expansion Slots Details
2 x PCIe 2.0 x16 (single at x16 or dual at x8 / x8 mode), 2 x PCIe 2.0 x 1(5GT/s, blue slots), 1 x PCIe 2.0 x 1(2.5GT/s,gray slot), 2 x PCI
Storage Controller
SATA 3.0 Gbps
Audio Controller
VIA VT1828S
Network
Gigabit Ethernet
Connectors/Ports
Audio-In, Audio-Out, PS/2 Keyboard, PS/2 Mouse, RJ-45, USB 1.1, USB 2.0
Connectors/Ports Details
Back Panel I/O Ports, 1 x PS/2 Keyboard (Purple), 1 x PS/2 mouse port (Green), 1 x Coaxial S/PDIF Output, 1 x Optical S/PDIF Output, 1 x IEEE1394a, 1 x eSATA port, 1 x RJ45 port, 2 x USB 3.0/2.0 ports (blue), 6 x USB 2.0/1.1 ports, 8-channel Audio I/
