Description

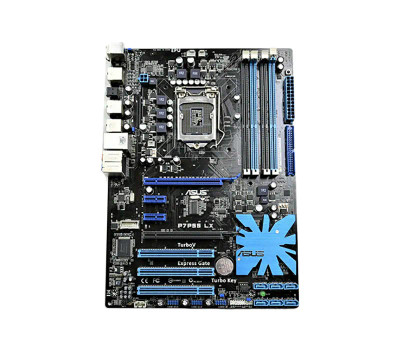

90-MIBC70-G0EAY0KZ - Asus P7P55D-E LX Intel P55 Chipset Core i7/ Core i5/ Core i3 Processors Supports Socket 1156 ATX Motherboard
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
LGA 1156
Supported CPU(s)
Intel Core i3 Processor, Intel Core i5 Processor, Intel Core i7 Processor
Chipset
Intel P55 Express
Number of Memory Slot(s)
4
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600)
Maximum Installed Memory
16 GB
Expansion Slots
PCI, PCI-E 2.0 x1, PCI-E 2.0 x16
Expansion Slots Details
4 x PCIe 2.0 x1 (2.5 GT/s, gray), 1 x PCIe 2.0 x16, 2 x PCI
Storage Controller
SATA 3.0 Gbps
Audio Controller
VIA VT1708S
Network
Gigabit Ethernet
Connectors/Ports
Audio-In, Audio-Out, Chassis Fan Connector, CPU Fan Connector, PS/2 Keyboard, PS/2 Mouse, RJ-45, USB 3.1
Connectors/Ports Details
Back I/O Ports, 6 x USB 2.0, 1 x LAN (RJ45) port(s), 6 x Audio jack(s), 1 x PS/2 keyboard (purple), 1 x eSATA 3Gb/s, 2 x USB 3.1 Gen 1, 1 x Optical S/PDIF out, 1 x PS/2 mouse (green), , Internal I/O Ports, 2 x Chassis Fan connector(s) (1 x 3 -pin, 1
