Description

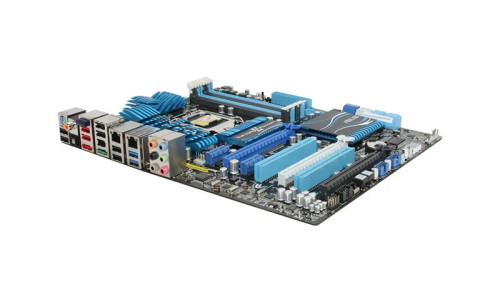

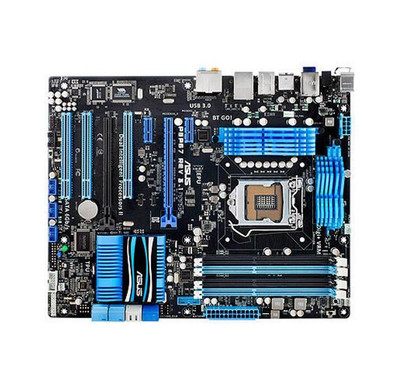

90-MIBE4A-G0EAY0DZ - Asus P8P67 Socket LGA1155 Intel P67 Chipset ATX System Board Motherboard Supports Core i7 / i5 / i3 Series DDR3 4x DIMM
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
Supported CPU(s)
Intel Core i3 Processor, Intel Core i5 Processor, Intel Core i7 Processor
Supported CPU Technologies
Intel Turbo Boost Technology
Chipset
Intel P67 Express
Number of Memory Slot(s)
4
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-14900 (DDR3-1866), PC3-8500 (DDR3-1066)
Maximum Installed Memory
32 GB
Expansion Slots
PCI-E 2.0 x1, PCI-E 2.0 x16
Expansion Slots Details
1 x PCIe 2.0 x16, 1 x PCIe 2.0 x16 (x4 mode, black) *1, 2 x PCIe 2.0 x1, 3 x PCI
Storage Controller
SATA 3.0 Gbps, SATA 6.0 Gbps
Audio Controller
Realtek ALC892
Network
Gigabit Ethernet
Connectors/Ports
Audio-In, Audio-Out, Chassis Fan Connector, COM, CPU Fan Connector, PS/2 Keyboard, PS/2 Mouse, RJ-45, USB 2.0, USB 3.1
Connectors/Ports Details
Back I/O Ports, 1 x PS/2 keyboard (purple), 1 x PS/2 mouse (green), 1 x Bluetooth module(s), 1 x IEEE 1394a, 1 x LAN (RJ45) port(s), 2 x USB 3.1 Gen 1, 6 x USB 2.0, 1 x Optical S/PDIF out, 6 x Audio jack(s), , Back I/O Ports, 1 x USB 3.1 Gen 1 connec
