Description

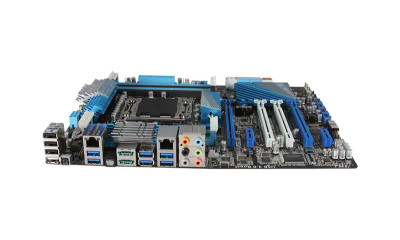

90-MIBH50-G0EAY00Z - Asus P9X79 DELUXE Socket LGA2011 Intel X79 Chipset ATX System Board Motherboard Supports Core i7 Series DDR3 8x DIMM
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
LGA 2011
Supported CPU(s)
Intel Core i7 Processor
Supported CPU Technologies
Intel Turbo Boost Technology
Chipset
Intel X79 Express
Number of Memory Slot(s)
8
Number of Memory Channel(s)
4
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-14900 (DDR3-1866), PC3-19200 (DDR3-2400), PC3-8500 (DDR3-1066)
Maximum Installed Memory
128 GB
Expansion Slots
PCI-E 2.0 x16, PCI-E 3.0 x16
Expansion Slots Details
3 x PCIe 3.0/2.0 x16 (dual x16 or x16/x8/x8) *1, 1 x PCIe 3.0/2.0 x16 (x8 mode) *1, 2 x PCIe 2.0 x1
Storage Controller
SATA 3.0 Gbps, SATA 6.0 Gbps
Audio Controller
Realtek ALC898
Network
Gigabit Ethernet
Connectors/Ports
Chassis Fan Connector, CPU Fan Connector, PS/2 Keyboard, PS/2 Mouse, RJ-45, USB 2.0, USB 3.1
Connectors/Ports Details
Back I/O Ports, 1 x Bluetooth module(s), 2 x Power eSATA 6Gb/s, 2 x LAN (RJ45) port(s), 6 x USB 3.1 Gen 1, 4 x USB 2.0 (one port can be switched to USB BIOS Flashback®), 1 x Optical S/PDIF out, 6 x Audio jack(s), 1 x Wi-Fi antenna port(s), 1 x USB BI
