Description

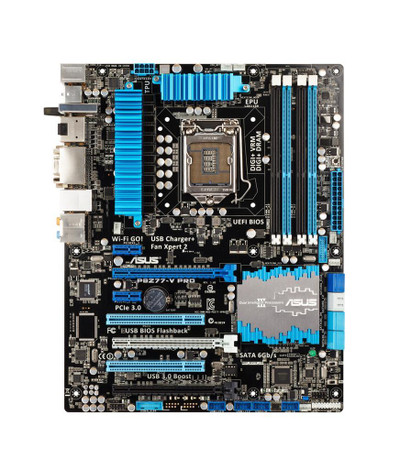

90-MIBHS0-G0EAY0DZ - Asus P8Z77-V PRO LGA 1155 Intel Z77 Chipset 3rd/2nd Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR3 4x
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
LGA 1155
Supported CPU(s)
Intel Celeron Processor, Intel Core i3 Processor, Intel Core i5 Processor, Intel Core i7 Processor, Intel Pentium Processor
Chipset
Intel Z77 Express
Number of Memory Slot(s)
4
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-14900 (DDR3-1866), PC3-16000 (DDR3-2000), PC3-19200 (DDR3-2400), PC3-21300 (DDR3-2666)
Maximum Installed Memory
32 GB
Expansion Slots
PCI-E 2.0 x1, PCI-E 2.0 x16, PCI-E 2.0 x4
Expansion Slots Details
2 x PCIe 3.0/2.0 x16 (x16 or dual x8) *3, 1 x PCIe 2.0 x16 (x4 mode, black), 2 x PCIe 2.0 x1 *4, 2 x PCI
Storage Controller
SATA 3.0 Gbps, SATA 6.0 Gbps
Audio Controller
Realtek ALC892
Network
Gigabit Ethernet
Connectors/Ports
Audio-In, Audio-Out, Chassis Fan Connector, CPU Fan Connector, DVI-D, HDMI, PS/2 Keyboard, PS/2 Mouse, RJ-45, USB 2.0, USB 3.1
Connectors/Ports Details
Back I/O Ports, 1 x PS/2 keyboard/mouse combo port(s), 1 x DVI-D, 1 x D-Sub, 1 x DisplayPort, 1 x HDMI, 1 x LAN (RJ45) port(s), 4 x USB 3.1 Gen 1, 2 x USB 2.0, 1 x Optical S/PDIF out, 6 x Audio jack(s), 1 x WLAN connector(s) for ASUS wireless module,
