Description

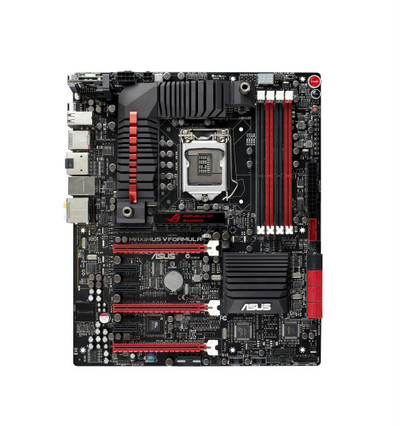

90-MIBII2-G0EAY0VZ - Asus Maximus V Formula Socket LGA 1155 Intel Z77 Chipset 3rd/2nd Generation Core i7 / i5 / i3 / Pentium / Celeron Processors
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
E-ATX
CPU Socket Type
LGA 1155
Supported CPU(s)
Intel Celeron Processor, Intel Core i3 Processor, Intel Core i5 Processor, Intel Core i7 Processor, Intel Pentium Processor
Chipset
Intel Z77 Express
Number of Memory Slot(s)
4
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-14900 (DDR3-1866), PC3-19200 (DDR3-2400), PC3-21300 (DDR3-2666)
Maximum Installed Memory
32 GB
Expansion Slots
PCI-E 2.0 x1, PCI-E 2.0 x16, PCI-E 2.0 x4
Expansion Slots Details
3 x PCIe 3.0/2.0 x16 (x16 or dual x8 or x8/x4/x4) *2, 1 x PCIe 2.0 x4, 3 x PCIe 2.0 x1, 1 x mini-PCIe 2.0 x1 *3
Storage Controller
SATA 3.0 Gbps, SATA 6.0 Gbps
Network
Gigabit Ethernet
Connectors/Ports Details
Back I/O Ports, 1 x DisplayPort, 1 x HDMI, 1 x eSATA 3Gb/s, 1 x LAN (RJ45) port(s), 4 x USB 3.1 Gen 1, 4 x USB 2.0, 1 x Optical S/PDIF out, 1 x Optical S/PDIF in, 5 x Audio jack(s), 1 x Clear CMOS button(s), 1 x ROG Connect On/ Off switch(es), , Inte
