Description

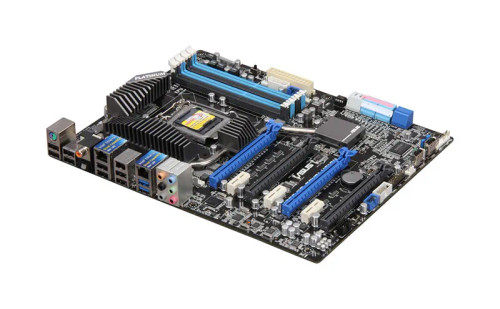

90-MSVDAA-G0EAY00Z - Asus P8P67 WS Revolution B3 Intel Socket 1155 Intel P67 B3 ATX RAID SATA Gigabit LAN Motherboard
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
LGA 1155
Supported CPU(s)
Intel Core i3 Processor, Intel Core i5 Processor, Intel Core i7 Processor, Intel Xeon Processor
Chipset
Intel P67 Express
Number of Memory Slot(s)
4
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-14900 (DDR3-1866), PC3-8500 (DDR3-1066)
Maximum Installed Memory
32 GB
Expansion Slots
PCI-E 2.0 x1, PCI-E 2.0 x16
Expansion Slots Details
2 x PCIe 2.0 x16 (x16/x8), 2 x PCIe 2.0 x16 (x8 mode), 3 x PCIe 2.0 x1
Storage Controller
SATA 3.0 Gbps, SATA 6.0 Gbps
Audio Controller
Realtek ALC889
Network
Gigabit Ethernet
Connectors/Ports
Audio-In, Audio-Out, Chassis Fan Connector, CPU Fan Connector, TPM Header, USB 2.0, USB 3.1
Connectors/Ports Details
Back I/O Ports, 1 x PS/2 keyboard/mouse combo port(s), 1 x IEEE 1394a, 2 x LAN (RJ45) port(s), 2 x USB 3.1 Gen 1, 8 x USB 2.0, 1 x Coaxial S/PDIF out, 1 x Optical S/PDIF out, 6 x Audio jack(s), , Internal I/O Ports, 2 x USB 2.0 connector(s) support(s
