Description

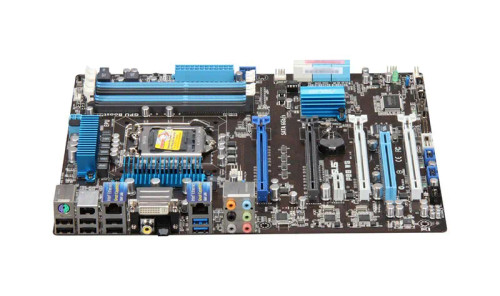

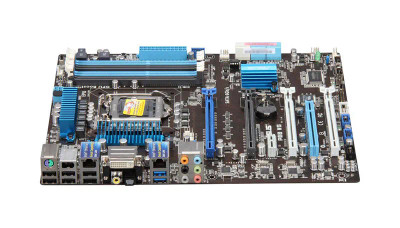

90-MSVDI0-G0EAY00Z - Asus P8B WS Socket LGA1155 Intel C206 Chipset ATX System Board Motherboard Supports Core i7 /i5 / i3 / Pentium / Celeron Series DDR3 4x DIMM
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
LGA 1155
Supported CPU(s)
Intel Celeron Processor, Intel Core i3 Processor, Intel Core i5 Processor, Intel Core i7 Processor, Intel Pentium Processor, Intel Xeon Processor
Supported CPU Technologies
Intel Turbo Boost Technology
Chipset
Intel C206
Number of Memory Slot(s)
4
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-8500 (DDR3-1066)
Maximum Installed Memory
32 GB
Expansion Slots
PCI, PCI-E 2.0 x16, PCI-E x1
Expansion Slots Details
2 x PCIe 3.0/2.0 x16 (x16 or dual x8, black+blue) *3, 2 x PCIe 2.0 x16 (x4 mode, white), 1 x PCIe x1, 1 x PCI
Storage Controller
SATA 3.0 Gbps, SATA 6.0 Gbps
Audio Controller
Realtek ALC892
Network
Gigabit Ethernet
Connectors/Ports
Audio-In, Audio-Out, Chassis Fan Connector, COM, CPU Fan Connector, PS/2 Keyboard, PS/2 Mouse, RJ-45, USB 2.0, USB 3.1
Connectors/Ports Details
Back I/O Ports, 1 x PS/2 keyboard/mouse combo port(s), 1 x DVI-I, 1 x IEEE 1394a, 2 x LAN (RJ45) port(s), 2 x USB 3.1 Gen 1, 6 x USB 2.0, 1 x Coaxial S/PDIF out, 1 x Optical S/PDIF out, 6 x Audio jack(s), , Back I/O Ports, 2 x USB 2.0 connector(s) su
Warranty Information
8
