Description

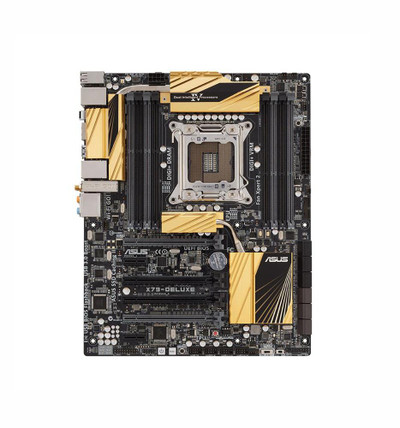

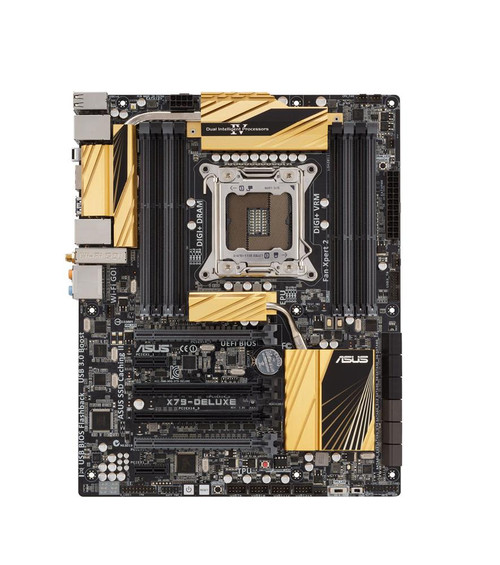

90MB0GA0-M0EAY0 - Asus X79-DELUXE Socket LGA 2011 Intel X79 Chipset Core i7/ Core i7 Extreme Edition Processors Support DDR3 8x DIMM 4x SATA
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
LGA 2011
Supported CPU(s)
Intel Core i7 Processor
Chipset
Intel X79 Express
Number of Memory Slot(s)
8
Number of Memory Channel(s)
4
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-14900 (DDR3-1866), PC3-19200 (DDR3-2400), PC3-8500 (DDR3-1066)
Maximum Installed Memory
64 GB
Expansion Slots
PCI-E 2.0 x16, PCI-E 3.0 x16
Expansion Slots Details
3 x PCIe 3.0/2.0 x16 (dual x16 or x16/x8/x8) *1, 1 x PCIe 3.0/2.0 x16 (x4 mode), 2 x PCIe x1
Storage Controller
SATA 3.0 Gbps, SATA 6.0 Gbps
Audio Controller
Realtek ALC1150
Network
Gigabit Ethernet
Connectors/Ports
Audio-In, Audio-Out, Chassis Fan Connector, COM, CPU Fan Connector, PS/2 Keyboard, PS/2 Mouse, RJ-45, TPM Header, USB 2.0
Connectors/Ports Details
Back I/O Ports, 2 x Power eSATA 6Gb/s, 2 x LAN (RJ45) port(s), 6 x USB 3.1 Gen 1 (blue), 4 x USB 2.0 (one port can be switched to USB BIOS Flashback®), 1 x Optical S/PDIF out, 5 x Audio jack(s), 1 x USB BIOS Flashback® Button(s), 1 x ASUS Wi-Fi GO! m
