Description

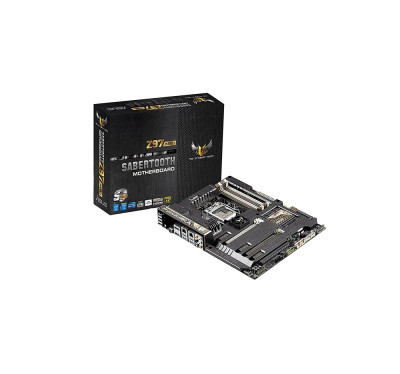

90MB0I40-M0EAY0 - Asus SABERTOOTH Z97 MARK 1 Socket LGA1150 Intel Z97 Chipset ATX System Board Motherboard Supports Core i7/i5/i3/Pentium/Celeron DDR3 4x DIMM
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
LGA 1150
Supported CPU(s)
Intel Celeron Processor, Intel Core i3 Processor, Intel Core i5 Processor, Intel Core i7 Processor, Intel Pentium Processor
Supported CPU Technologies
Intel Turbo Boost Technology
Chipset
Intel Z97
Number of Memory Slot(s)
4
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-14900 (DDR3-1866)
Maximum Installed Memory
32
Expansion Slots
PCI-E 2.0 x16, PCI-E 3.0 x16
Expansion Slots Details
2 x PCIe 3.0/2.0 x16 (Single at x16, dual at x8/x8), 1 x PCIe 2.0 x16 (max at x4 mode, black) *1, 3 x PCIe x1
Storage Controller
SATA 6.0 Gbps
Audio Controller
Realtek ALC1150
Network
Gigabit Ethernet
Connectors/Ports
8-pin 12V Power Connector, Audio-In, Audio-Out, Chassis Fan Connector, CPU Fan Connector, PS/2 Keyboard, PS/2 Mouse, RJ-45, USB 2.0, USB 3.1
Connectors/Ports Details
Back I/O Ports, 1 x DisplayPort, 1 x HDMI, 2 x LAN (RJ45) port(s), 4 x USB 3.1 Gen 1 (blue), 4 x USB 2.0, 1 x Optical S/PDIF out, 5 x Audio jack(s), 1 x USB BIOS Flashback® Button(s), , Internal I/O Ports, 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s)
