Description

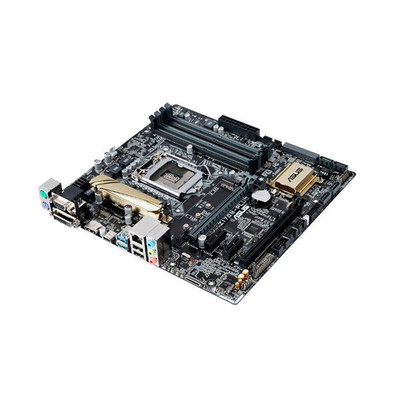

90MB0M60-M0AAY0 - Asus Socket LGA1151 Intel Z170 Chipset Micro-ATX System Board Motherboard Supports Core i7 / i5 / i3 Series DDR4 4x DIMM
Details
Brand
ASUS
Weight
8.00 LBS
Chipset Manufacturer
Intel
Total Processor Supported
1
Processor Socket
Socket H4 LGA-1151
Processor Supported
Core i7, Core i5, Core i3, Pentium, Celeron
Number of Memory Slots
4
Memory Form Factor
DIMM
Maximum Memory
64 GB
Memory Speed Supported
3.40 GHz (O.C.), 3.33 GHz (O.C.), 3.30 GHz (O.C.), 3.20 GHz (O.C.), 3 GHz (O.C.), 2.80 GHz (O.C.), 2.67 GHz (O.C.), 2.40 GHz (O.C.), 2.13 GHz
Memory Technology
DDR4 SDRAM
Controller Type
Serial ATA/600
RAID Supported
Yes
RAID Levels
0, 1, 5, 10
Onboard Video
CPU Dependent Video
Graphics Controller Manufacturer
Intel
Audio Channels
7.1
Gigabit Ethernet
Yes
Number of Total Expansion Slots
4
Total Number of PCI Express Slots
4
Number of PCI Express x1 Slots
2
Number of PCI Express x16 Slots
2
Total Number of USB Ports
5
Number of USB 3.0 Ports
2
VGA
Yes
HDMI
Yes
DVI
Yes
Number of SATA Interfaces
6
Number of M.2 Interfaces
1
Number of SATA Express Interfaces
1
Total Number of Onboard USB Ports
8
Number of Onboard USB 3.0 Ports
4
Onboard S/PDIF Header
Yes
Form Factor
Micro ATX
Width
9.6
Depth
9
Environmentally Friendly
Yes
Environmental Certification
RoHS, WEEE
Country of Origin
China
