Description

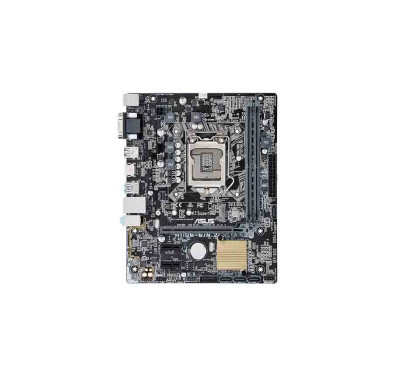

90MB0P30-M0EAY0 - Asus H110M-A Socket LGA1151 Intel H110 Chipset Micro-ATX System Board Motherboard Supports Core i7/i5/i3/Pentium/Celeron DDR4 2x DIMM
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
Micro ATX
CPU Socket Type
LGA 1151
Supported CPU(s)
Intel Celeron Processor, Intel Core i3 Processor, Intel Core i5 Processor, Intel Core i7 Processor, Intel Pentium Processor
Chipset
Intel H110
Number of Memory Slot(s)
2
Supported Memory Standard(s)
PC4-14900 (DDR4-1866), PC4-17000 (DDR4-2133), PC4-19200 (DDR4-2400)
Maximum Installed Memory
32 GB
Expansion Slots
PCI-E 2.0 x1, PCI-E 2.0 x16, PCI-E 3.0 x16
Expansion Slots Details
1 x PCIe 3.0/2.0 x16 (x16 mode), 2 x PCIe 2.0 x1
Storage Controller
SATA 6.0 Gbps
Audio Controller
Realtek ALC887-VD2
Network
Gigabit Ethernet
Connectors/Ports
Audio-In, Audio-Out, Chassis Fan Connector, COM, CPU Fan Connector, DVI-D, HDMI, PS/2 Keyboard, PS/2 Mouse, RJ-45, USB 2.0, USB 3.1
Connectors/Ports Details
Back I/O Ports, 1 x PS/2 keyboard (purple), 1 x PS/2 mouse (green), 1 x DVI-D, 1 x D-Sub, 1 x HDMI, 1 x LAN (RJ45) port(s), 2 x USB 3.1 Gen 1 (blue), 4 x USB 2.0, 3 x Audio jack(s), , Internal I/O Ports, 1 x USB 3.1 Gen 1 connector(s) support(s) addi
