Description

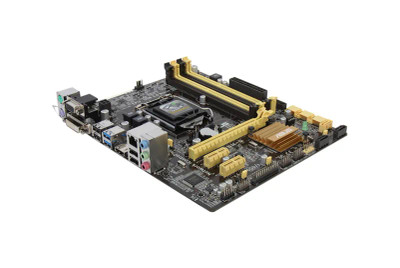

90MB0EH0-M0EAY0 - Asus GRYPHON Z87 Socket LGA1150 Intel Z87 Chipset Micro-ATX System Board Motherboard Supports Core i7/i5/i3/Pentium/Celeron DDR3 4x DIMM
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
Micro ATX
CPU Socket Type
LGA 1150
Supported CPU(s)
Intel Celeron Processor, Intel Core i3 Processor, Intel Core i5 Processor, Intel Core i7 Processor, Intel Pentium Processor
Chipset
Intel Z87
Number of Memory Slot(s)
4
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-14900 (DDR3-1866)
Maximum Installed Memory
32 GB
Expansion Slots
PCI-E 2.0 x1, PCI-E 2.0 x16, PCI-E 3.0 x16
Expansion Slots Details
2 x PCIe 3.0/2.0 x16 (x16 or dual x8), 1 x PCIe 2.0 x16 (x4 mode, black), 1 x PCIe 2.0 x1
Storage Controller
SATA 6.0 Gbps
Audio Controller
Realtek ALC892
Network
Gigabit Ethernet
Connectors/Ports
Audio-Out, Bluetooth, Chassis Fan Connector, COM, CPU Fan Connector, D-Sub, DVI-D, PS/2 Keyboard, PS/2 Mouse, RJ-45, USB 2.0, USB 3.1
Connectors/Ports Details
Back I/O Ports, 1 x DVI-D, 1 x HDMI, 1 x LAN (RJ45) port(s), 4 x USB 3.1 Gen 1 (blue), 4 x USB 2.0, 1 x Optical S/PDIF out, 6 x Audio jack(s), , Internal I/O Ports, 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 por
Warranty Information
8
