Description

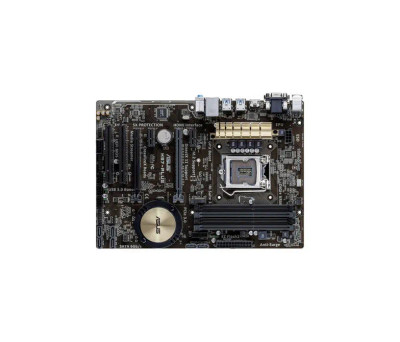

90MB0IN0-M0EAY0 - Asus H97-Plus Socket LGA1150 Intel H97 Chipset ATX System Board Motherboard Supports Core i7/i5/i3/Pentium/Celeron DDR3 4x DIMM
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
LGA 1150
Supported CPU(s)
Intel Celeron Processor, Intel Core i3 Processor, Intel Core i5 Processor, Intel Core i7 Processor, Intel Pentium Processor
Supported CPU Technologies
Intel Turbo Boost Technology
Chipset
Intel H97
Number of Memory Slot(s)
4
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600)
Maximum Installed Memory
32 GB
Expansion Slots
PCI, PCI-E 2.0 x16, PCI-E 3.0 x16
Expansion Slots Details
1 x PCIe 3.0/2.0 x16 (x16 mode, gray), 1 x PCIe 2.0 x16 (max at x4 mode, black) *1, 2 x PCIe x1, 2 x PCI
Storage Controller
SATA 6.0 Gbps
Audio Controller
Realtek ALC887
Network
Gigabit Ethernet
Connectors/Ports
Audio-In, Audio-Out, Chassis Fan Connector, COM, CPU Fan Connector, D-Sub, DVI-D, PS/2 Keyboard, PS/2 Mouse, RJ-45, USB 2.0, USB 3.1
Connectors/Ports Details
Back I/O Ports, 1 x PS/2 keyboard (purple), 1 x PS/2 mouse (green), 1 x DVI-D, 1 x D-Sub, 1 x HDMI, 1 x LAN (RJ45) port(s), 4 x USB 3.1 Gen 1 (blue), 2 x USB 2.0, 3 x Audio jack(s), , Internal I/O Ports, 1 x USBb 3.1 Gen 1 connector(s) support(s) add
Warranty Information
8
