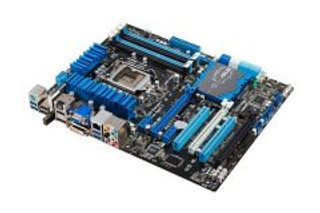

GA-X99-UD3P - Gigabyte Technology Intel X99 Express DDR4 4-Slot System Board Motherboard Socket LGA2011-3
Details
Brand
Gigabyte Technology
Weight
8.00 LBS
Chipset Manufacturer
Intel
Total Processor Supported
1
Processor Socket
Socket LGA 2011-v3
Processor Supported
Core i7, Xeon
Number of Memory Slots
4
Memory Form Factor
DIMM
Maximum Memory
64 GB
Memory Speed Supported
3.33 GHz, 3.20 GHz, 3 GHz, 2.80 GHz, 2.67 GHz, 2.40 GHz, 2.13 GHz
Memory Technology
DDR4 SDRAM
Controller Type
Serial ATA/600
RAID Supported
Yes
RAID Levels
0, 1, 5, 10
Onboard Video
No
Audio Channels
7.1
Gigabit Ethernet
Yes
Number of Total Expansion Slots
7
Total Number of PCI Express Slots
7
Number of PCI Express x1 Slots
3
Number of PCI Express x16 Slots
4
Total Number of USB Ports
10
Number of USB 3.0 Ports
6
VGA
No
Number of SATA Interfaces
10
Number of M.2 Interfaces
1
Number of SATA Express Interfaces
1
Total Number of Onboard USB Ports
6
Number of Onboard USB 3.0 Ports
2
Form Factor
ATX
Width
12
Depth
9.6
