Description

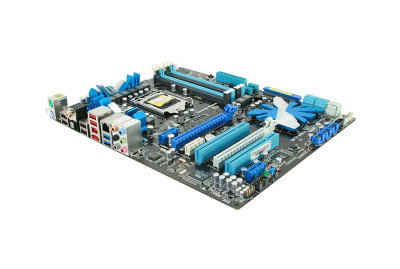

90-MIB8X0-G0EAY00Z - Asus P7P55D PRO Socket LGA1156 Intel P55 Express Chipset ATX System Board Motherboard Supports Core i7 / Core i5 Series DDR3 4x DIMM
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
LGA 1156
Supported CPU(s)
Intel Core i5 Processor, Intel Core i7 Processor
Supported CPU Technologies
Intel Turbo Boost Technology
Chipset
Intel P55 Express
Number of Memory Slot(s)
4
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-8500 (DDR3-1066)
Maximum Installed Memory
16 GB
Expansion Slots
PCI-E 2.0 x1, PCI-E 2.0 x16
Expansion Slots Details
2 x PCIe 2.0 x16 (single at x16 or dual at x8/x8 mode), 1 x PCI Express 2.0 x16 slots (at x4 mode, 2.5GT/s), 2 x PCI Express 2.0 x1 (2.5GT/s), 2 x PCI
Storage Controller
SATA 3.0 Gbps
Audio Controller
VIA VT1828S
Network
Gigabit Ethernet
Connectors/Ports Details
Back Panel I/O Ports, 1 x External SATA, 1 x IEEE 1394a, 1 x LAN(RJ45) port, 8 x USB 2.0/1.1, 8 -Channel Audio I/O, 1 x PS/2 Keyboard (Purple), 1 x PS/2 mouse port (Green), 1 x Coaxial S/PDIF Output, 1 x Optical S/PDIF Output, , Internal I/O Connecto
Warranty Information
8
