Description

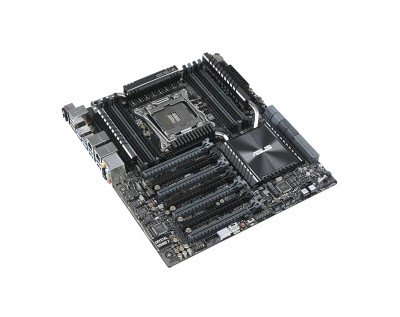

90SB0460-M0EAY0 - Asus Z10PE-D8 WS Socket LGA2011-3 Intel C612 Chipset SSI EEB System Board Motherboard Supports 2x Xeon E5-2600 v3 DDR4 8x DIMM
Details
Brand
ASUS
Weight
8.00 LBS
CPU Socket Type
LGA 2011-3
Supported CPU(s)
Intel Xeon Processor
Chipset
Intel C612
Number of Memory Slot(s)
8
Number of Memory Channel(s)
4
Supported Memory Standard(s)
PC4-12800 (DDR4-1600), PC4-14900 (DDR4-1866), PC4-17000 (DDR4-2133), PC4-19200 (DDR4-2400)
Maximum Installed Memory
512 GB
Expansion Slots
PCI-E 2.0 x16, PCI-E 3.0 x16
Expansion Slots Details
4 x PCIe 3.0/2.0 x16 (dual x16 or quad x8) *2, 2 x PCIe 3.0/2.0 x16 (dual x16) *2, 1 x PCIe 3.0/2.0 x16 (dual x8) *2
Storage Controller
SAS 6.0 Gbps
Audio Controller
Realtek ALC1150
Network
Gigabit Ethernet
Connectors/Ports
Chassis Fan Connector, CPU Fan Connector, PS/2 Keyboard, PS/2 Mouse, RJ-45, USB 2.0
Connectors/Ports Details
Back I/O Ports, 1 x PS/2 keyboard/mouse combo port(s), 2 x LAN (RJ45) port(s), 6 x USB 3.1 Gen 1 (blue), 2 x USB 2.0 *6, 1 x Optical S/PDIF out, 1 x USB BIOS Flashback® Button(s), 1 x Q-Code Logger button, 1 x 8-channel Audio I/O, , Internal I/O Port
Warranty Information
8
