Description

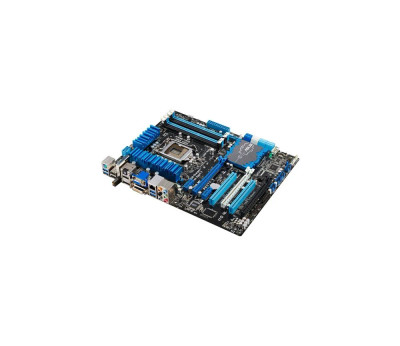

90MB0LR0-M0EAY0 - Asus Z170-DELUXE Socket LGA1151 Intel Z170 Chipset ATX System Board Motherboard Supports Core i7/i5/i3/Pentium/Celeron DDR4 4x DIMM
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
LGA 1151
Supported CPU(s)
Intel Celeron Processor, Intel Core i3 Processor, Intel Core i5 Processor, Intel Core i7 Processor, Intel Pentium Processor
Supported CPU Technologies
Intel Turbo Boost Technology
Chipset
Intel Z170
Number of Memory Slot(s)
4
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC4-14900 (DDR4-1866), PC4-17000 (DDR4-2133), PC4-19200 (DDR4-2400), PC4-21333 (DDR4-2666), PC4-25600 (DDR4-3200)
Maximum Installed Memory
64 GB
Expansion Slots
PCI-E 2.0 x16, PCI-E 3.0 x16, PCI-E x1
Expansion Slots Details
2 x PCIe 3.0/2.0 x16 (x16 or dual x8), 1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1, 4 x PCIe x1
Storage Controller
SATA 6.0 Gbps
Audio Controller
Realtek ALC1150
Network
Gigabit Ethernet
Connectors/Ports
Chassis Fan Connector, CPU Fan Connector, HDMI, PS/2 Keyboard, PS/2 Mouse, RJ-45, TPM Header, USB 2.0, USB 3.1
Connectors/Ports Details
Back I/O Ports, 1 x DisplayPort, 1 x HDMI, 2 x LAN (RJ45) port(s), 5 x USB 3.1 Gen 2 (teal blue)Type-A,, 1 x USB 3.1 Gen 2 USB Type-CTM, 1 x USB 3.1 Gen 1 (blue), 1 x USB 2.0 (one port can be switched to USB BIOS Flashback®), 1 x Optical S/PDIF out,
Warranty Information
8
