Description

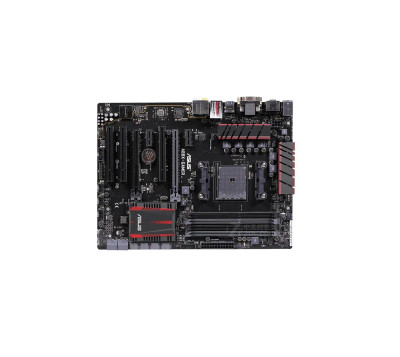

A88X-GAMER - Asus Socket FM2+ AMD A88X Chipset ATX System Board Motherboard Supports Athlon/A-Series DDR3 4x DIMM
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
Socket FM2+
Supported CPU(s)
AMD A-Series Processor, AMD Athlon Processor
Supported CPU Technologies
Quad Core
Number of Memory Slot(s)
4
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-14900 (DDR3-1866), PC3-19200 (DDR3-2400)
Maximum Installed Memory
64GB
Expansion Slots
PCI-E 2.0 x16, PCI-E x1
Expansion Slots Details
1 x PCIe 3.0/2.0 x16 (x16 mode) *3, 1 x PCIe 2.0 x16 (max at x4 mode, black), 2 x PCIe 2.0 x1 , 3 x PCI
Storage Controller
SATA 6.0 Gbps
Storage Controller Details
8 x SATA 6Gb/s port(s), gray, Support Raid 0, 1, 5, 10, JBOD
Network
Ethernet, Gigabit Ethernet
Connectors/Ports
8-pin 12V Power Connector, Chassis Fan Connector, COM, CPU Fan Connector, RJ-45, S/PDIF, TPM Header, USB 2.0, USB 3.1
Connectors/Ports Details
Internal I/O Connectors, 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin), 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s), 1 x TPM header, 1 x COM port(s) connector(s), 8 x SATA 6Gb/s connector(s
Warranty Information
8
