Description

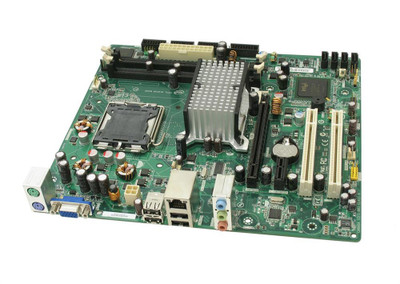

DG31PR - Intel 31 LGA 775 Micro ATX CLASSIC Series Desktop Motherboard
Details
Brand
Intel
Weight
8.00 LBS
Form Factor
Micro ATX
CPU Socket Type
LGA775
Supported CPU(s)
Intel Celeron Processor, Intel Core2 Duo Desktop Processor, Intel Core2 Quad Processor, Intel Pentium Dual-Core Processor
FSB Speed (Maximum)
1333 MHz
Supported CPU Technologies
Dual Core, Enhanced Intel Speedstep Technology, Execute Disable Bit, Hyper-Threading Technology, Idle States, Intel 64 Architecture, Quad Core, Thermal Monitoring Technologies
Chipset
Intel G31 Express
South Bridge Chipset
Intel ICH7
Number of Memory Slot(s)
2
Supported Memory Standard(s)
PC2-5300 (DDR2-667), PC2-6400 (DDR2-800)
Maximum Installed Memory
4 GB
Expansion Slots
PCI, PCI Express x1, PCI Express x16
Storage Controller
(ATA-6) Ultra ATA/100, Floppy Connector, Serial-ATA 3.0 Gbps
On-Board Video Controller
Intel Graphics Media Accelerator 3100
Audio Controller
Realtek ALC888
Network
Gigabit Ethernet
Connectors/Ports
Audio-In, Audio-Out, Microphone, PS/2, RJ-45 (Ethernet), USB 2.0, Video-Out
Features
Memory:, Dual Channel Architecture, BIOS:, ACPI support, SMBIOS support, Hardware:, System Voltage, CPU Fan Tachometer, Chassis Temperature, CPU Core Temperature, Chassis Fan Tachometer, Sleep / Wake Up:, Mouse Wake Up, Keyboard Wake Up, Wake on USB
