Description

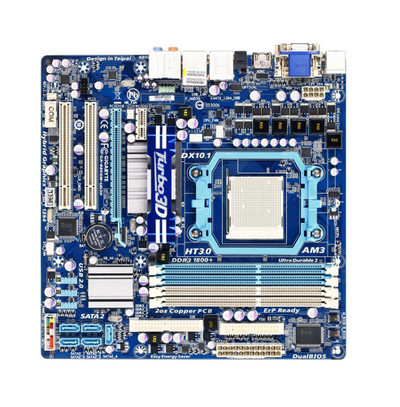

GA-880GM-UD2H-A1 - Gigabyte Technology Socket AM3+ AMD 880G/ SB710 Chipset AMD Phenom II/ Athlon II Processors Support DDR3 4x DIMM 5x SATA 3.0Gb/s Micro-ATX
Details
Brand
Gigabyte Technology
Weight
8.00 LBS
Form Factor
Micro ATX
CPU Socket Type
Socket AM3
Supported CPU(s)
AMD Athlon II Processor, AMD Phenom II Processor
Chipset
AMD 880G
South Bridge Chipset
AMD SB710
Number of Memory Slot(s)
4
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-6400 (DDR3-800), PC3-8500 (DDR3-1066)
Maximum Installed Memory
16 GB
Expansion Slots
PCI-E x1, PCI-E x16
Storage Controller
SATA 3.0 Gbps
Audio Controller
Realtek ALC892
Connectors/Ports Details
Internal I/O Connectors, 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x floppy disk drive connector, 1 x IDE connector, 5 x SATA 3Gb/s connectors, 1 x CPU fan header, 1 x system fan header, 1 x front panel header, 1 x fro
