Description

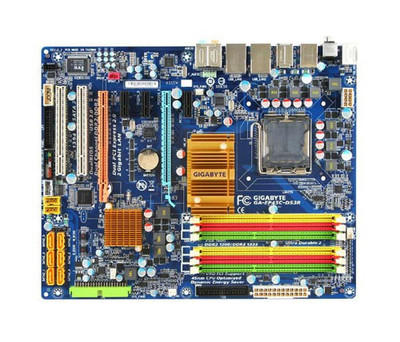

GA-EP45C-DS3R - Gigabyte Technology P45/ICH10 Chipset Core 2 Extreme/ Core 2 Quad/ Core 2 Duo/ Pentium Dual Core/ Celeron Processors Support Socket LGA775 ATX
Details
Brand
Gigabyte Technology
Weight
8.00 LBS
Chipset Manufacturer
Intel
Total Processor Supported
1
Processor Socket
Socket T LGA-775
Processor Supported
Core 2 Extreme Quad-Core, Core 2 Extreme, Core 2 Quad, Core 2 Duo, Pentium Dual-core, Celeron
Number of Memory Slots
6
Maximum Memory
16 GB
Memory Speed Supported
1.60 GHz, 1.33 GHz, 1.07 GHz, 800 MHz, 667 MHz
Memory Technology
DDR3 SDRAM, DDR2 SDRAM
Controller Type
Floppy Controller, Serial ATA/300, Ultra ATA/133 (ATA-7)
RAID Supported
Yes
RAID Levels
0, 5, 1, 1+0
Audio Channels
7.1
Gigabit Ethernet
Yes
Number of Total Expansion Slots
7
Total Number of PCI Express Slots
5
Number of PCI Express x1 Slots
3
Number of PCI Express x8 Slots
1
Number of PCI Express x16 Slots
1
Total Number of USB Ports
8
S/PDIF
Yes
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
2
Onboard S/PDIF Header
Yes
Form Factor
ATX
Width
12
Depth
9.6
Environmentally Friendly
Yes
Environmental Certification
RoHS, WEEE
