Description

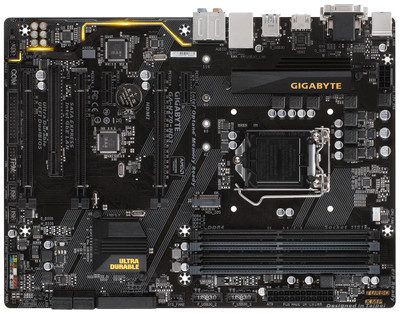

GA-H270-HD3 - Gigabyte Technology Socket LGA 1151 Intel H270 Express Chipset 7th/6th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4
Details
Brand
Gigabyte Technology
Weight
8.00 LBS
Chipset Manufacturer
Intel
Total Processor Supported
1
Processor Socket
Socket H4 LGA-1151
Processor Supported
Core i7, Core i3, Core i5, Celeron, Pentium
Number of Memory Slots
4
Memory Form Factor
DIMM, UDIMM
Maximum Memory
64 GB
Memory Speed Supported
2.40 GHz (O.C.), 2.13 GHz
Memory Technology
DDR4 SDRAM
Intel Optane Memory Ready
Yes
Controller Type
Serial ATA/600
RAID Supported
Yes
RAID Levels
10, 5, 1, 0
Onboard Video
CPU Dependent Video
Graphics Controller Manufacturer
Intel
Graphics Controller Model
HD Graphics
Audio Channels
7.1
Gigabit Ethernet
Yes
Number of Total Expansion Slots
6
Total Number of PCI Express Slots
5
Number of PCI Express x1 Slots
2
Number of PCI Express x16 Slots
3
Total Number of USB Ports
6
Number of USB 3.1 Ports
4
VGA
Yes
HDMI
Yes
DVI
Yes
Number of SATA Interfaces
6
Number of M.2 Interfaces
1
Number of SATA Express Interfaces
1
Total Number of Onboard USB Ports
8
Number of Onboard USB 3.1 Ports
4
Onboard S/PDIF Header
Yes
Form Factor
ATX
Width
12
Depth
8.9
