Description

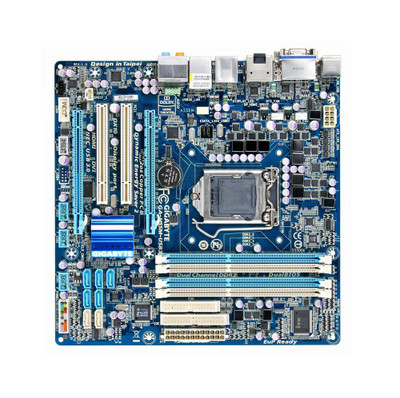

GA-H55M-USB3 - Gigabyte Technology Desktop Motherboard Intel H55 Express Chipset Socket 1156 Micro ATX 1 x Processor Support 16GB DDR3 SDRAM Maximum RAM Floppy
Details
Brand
Gigabyte Technology
Weight
8.00 LBS
Chipset Manufacturer
Intel
Total Processor Supported
1
Processor Socket
Socket 1156
Processor Supported
Core i7, Core i5, Core i3, Pentium
Number of Memory Slots
4
Maximum Memory
16 GB
Memory Speed Supported
1.60 GHz, 1.33 GHz, 1.07 GHz, 800 MHz
Memory Technology
DDR3 SDRAM
Controller Type
Floppy Controller, Serial ATA/300, Ultra ATA/133 (ATA-7)
RAID Supported
Yes
RAID Levels
0, 1, JBOD
Onboard Video
On-board Video Chipset
Graphics Controller Manufacturer
Intel
Audio Channels
7.1
Gigabit Ethernet
Yes
Number of Total Expansion Slots
4
Total Number of PCI Express Slots
2
Number of PCI Express x16 Slots
2
Total Number of USB Ports
8
Number of USB 3.0 Ports
2
S/PDIF
Yes
VGA
Yes
HDMI
Yes
DisplayPort
Yes
DVI
Yes
Number of SATA Interfaces
8
Total Number of Onboard USB Ports
3
Onboard S/PDIF Header
Yes
Form Factor
Micro ATX
Width
9.6
Depth
9.6
Environmentally Friendly
Yes
Environmental Certification
RoHS, WEEE
