Description

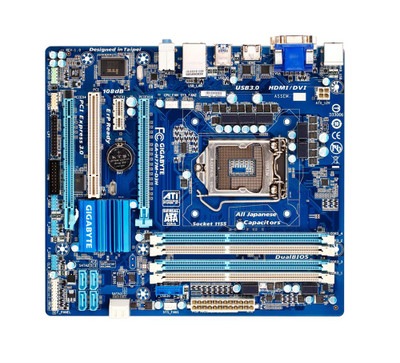

GA-H77M-D3H - Gigabyte Technology Socket LGA1155 Intel H77 Express Chipset micro-ATX Motherboard
Details
Brand
Gigabyte Technology
Weight
8.00 LBS
Chipset Manufacturer
Intel
Total Processor Supported
1
Processor Socket
Socket H2 LGA-1155
Processor Supported
Core i3, Core i5, Core i7, Pentium Dual-core, Celeron Dual-Core
Number of Memory Slots
4
Memory Form Factor
DIMM
Maximum Memory
32 GB
Memory Speed Supported
1.60 GHz, 1.33 GHz, 1.07 GHz
Memory Technology
DDR3 SDRAM
Controller Type
Serial ATA/600, Serial ATA/300
RAID Supported
Yes
RAID Levels
0, 1, 5, 1+0
Onboard Video
CPU Dependent Video
Audio Channels
7.1
Gigabit Ethernet
Yes
Number of Total Expansion Slots
4
Total Number of PCI Express Slots
3
Number of PCI Express x1 Slots
1
Number of PCI Express x16 Slots
2
Total Number of USB Ports
6
Number of USB 3.0 Ports
2
VGA
Yes
HDMI
Yes
DVI
Yes
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
8
Number of Onboard USB 3.0 Ports
2
Onboard S/PDIF Header
Yes
Form Factor
Micro ATX
Width
9.6
Depth
8.7
Environmentally Friendly
Yes
Environmental Certification
WEEE, China RoHS, ErP Ready
