Description

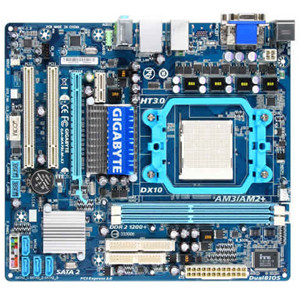

GA-MA78LM-S2 - Gigabyte Technology Desktop Motherboard AMD 760G Chipset Socket AM3 PGA-941 ATX 1 x Processor Support 8GB DDR2 SDRAM Maximum RAM Floppy
Details
Brand
Gigabyte Technology
Weight
8.00 LBS
Chipset Manufacturer
AMD
Total Processor Supported
1
Processor Socket
Socket AM3 PGA-941
Processor Supported
Phenom II X4, Phenom II X3, Phenom II X2, Phenom X4, Phenom X3, Athlon II X2, Athlon X2, Athlon 64 FX, Athlon 64, Athlon 64 X2, Sempron X2, Sempron, Phenom II
Number of Memory Slots
2
Maximum Memory
8 GB
Memory Speed Supported
1.07 GHz, 800 MHz
Memory Technology
DDR2 SDRAM
Controller Type
Floppy Controller, Serial ATA/300, Ultra ATA/133 (ATA-7)
RAID Supported
Yes
RAID Levels
0, 1, 1+0, JBOD
Onboard Video
On-board Video Chipset
Graphics Controller Manufacturer
ATI
Graphics Controller Model
Radeon HD 3000
Audio Channels
7.1
Gigabit Ethernet
Yes
Number of Total Expansion Slots
4
Total Number of PCI Express Slots
2
Number of PCI Express x1 Slots
1
Number of PCI Express x16 Slots
1
Total Number of USB Ports
8
VGA
Yes
DVI
Yes
Number of SATA Interfaces
4
Total Number of Onboard USB Ports
2
Onboard S/PDIF Header
Yes
Form Factor
ATX
Width
9.6
Depth
8.7
Environmentally Friendly
Yes
Environmental Certification
RoHS, WEEE
