Description

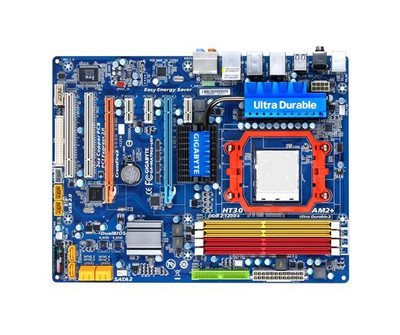

GA-MA790X-UD4 - Gigabyte Technology Socket AM3 AMD 790X/ SB750 Chipset AMD Phenom FX/ AMD Phenom/ AMD Athlon 64 FX/ AMD Athlon 64 X2 Dual-Core/ AMD Athlon
Details
Brand
Gigabyte Technology
Weight
8.00 LBS
Chipset Manufacturer
AMD
Total Processor Supported
1
Processor Socket
Socket AM3 PGA-941
Processor Supported
Phenom FX, Phenom X4, Phenom X3, Athlon X2, Athlon, Sempron X2, Sempron, Phenom II X4, Athlon 64 FX, Opteron, Athlon 64 X2, Athlon 64, Phenom II X3
Number of Memory Slots
4
Maximum Memory
16 GB
Memory Speed Supported
1.20 GHz, 1.07 GHz, 800 MHz
Memory Technology
DDR2 SDRAM
Controller Type
Floppy Controller, Serial ATA/300, Ultra ATA/133 (ATA-7)
RAID Supported
Yes
RAID Levels
0, 1, 5, 0+1, JBOD
Audio Channels
7.1
Gigabit Ethernet
Yes
Number of Total Expansion Slots
7
Total Number of PCI Express Slots
5
Number of PCI Express x1 Slots
3
Number of PCI Express x16 Slots
2
Total Number of USB Ports
8
S/PDIF
Yes
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
2
Onboard S/PDIF Header
Yes
Form Factor
Micro ATX
Width
12
Depth
9.1
Environmentally Friendly
Yes
Environmental Certification
RoHS, WEEE
