Description

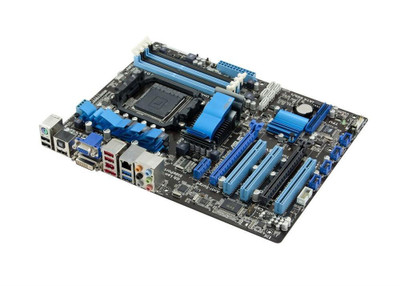

M5A88-V-EVO - Asus Desktop Motherboard AMD Socket AM3 PGA-941 ATX 1 x Processor Support 16GB DDR3 SDRAM Maximum RAM CrossFireX Support Serial ATA/300, Ultra ATA/133 ATA-7 Yes Controller Yes 2 x PCIe x16 Slot 2 x USB 3.0 Port Yes
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
Socket AM3+
Supported CPU(s)
AMD Athlon II Processor, AMD Phenom II Processor, AMD Sempron Processor
Supported CPU Technologies
Cool n Quiet Technology
Chipset
AMD 880G
Number of Memory Slot(s)
4
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-14900 (DDR3-1866), PC3-16000 (DDR3-2000), PC3-8500 (DDR3-1066)
Expansion Slots
PCI-E 2.0 x1, PCI-E 2.0 x16
Expansion Slots Details
1 x PCIe 2.0 x16 (blue), 1 x PCIe 2.0 x16 (x4 mode, black) , 1 x PCIe 2.0 x1, 3 x PCI
Storage Controller
SATA 6.0 Gbps
Storage Controller Details
AMD SB850 controller, 5 x SATA 6Gb/s port(s), white, Support Raid 0, 1, 5, 10, JBOD, , AMD SB850 controller, 1 x eSATA 6Gb/s port(s), red, , VIA VT6330 controller, 1 x UltraDMA 133/100/66 for up to 2 PATA devices , blue
Audio Controller
Realtek ALC892
Network
Gigabit Ethernet
Connectors/Ports
8-pin 12V Power Connector, Audio-In, Audio-Out, Chassis Fan Connector, COM, CPU Fan Connector, D-Sub, HDMI, PS/2, PS/2 Keyboard, PS/2 Mouse, RJ-45, TPM Header, USB 2.0
Connectors/Ports Details
Internal I/O Connectors, 4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s), 1 x IDE connector(s), 1 x COM port(s) connector(s), 5 x SATA 6Gb/s connector(s), 1 x IEEE 1394a connector(s), 1 x CPU Fan connector(s), 1 x Chassis Fan connect
