Description

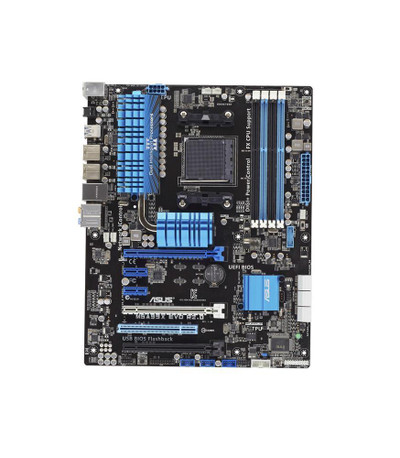

M5A99X-EVO-BO-R - Asus Socket AM3+ AMD 990FX + SB950 Chipset AMD FX/ AMD Phenom II/ Athlon II/ AMD Sempron 100 Series Processors DDR3 4x DIMM 6x
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
Socket AM3+
Supported CPU(s)
AMD Athlon II Processor, AMD Phenom II Processor, AMD Sempron Processor
Supported CPU Technologies
Cool n Quiet Technology
South Bridge Chipset
AMD SB950
Number of Memory Slot(s)
4
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-14900 (DDR3-1866), PC3-8500 (DDR3-1066)
Maximum Installed Memory
32GB
Expansion Slots
PCI-E 2.0 x16
Expansion Slots Details
2 x PCIe 2.0 x16 (x16 or dual x8), 1 x PCIe 2.0 x16 (x4 mode, black), 2 x PCIe 2.0 x1, 1 x PCI
Storage Controller
SATA 3.0 Gbps, SATA 6.0 Gbps
Storage Controller Details
AMD SB950 controller, 6 x SATA 6Gb/s port(s), gray, Support Raid 0, 1, 5, 10, , JMicron JMB362 controller, 2 x SATA 3Gb/s port(s), black, 1 x Power eSATA 3Gb/s port(s), green, 1 x eSATA 3Gb/s port(s), red
Audio Controller
Realtek ALC892
Network
Gigabit Ethernet
Connectors/Ports
8-pin 12V Power Connector, Audio-In, Audio-Out, Chassis Fan Connector, COM, CPU Fan Connector, PS/2, PS/2 Keyboard, PS/2 Mouse, RJ-45, USB 2.0, USB 3.1
Connectors/Ports Details
Internal I/O Connector, 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin, blue), 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s), 1 x COM port(s) connector(s), 6 x SATA 6Gb/s connector(s), 2 x SATA
