Description

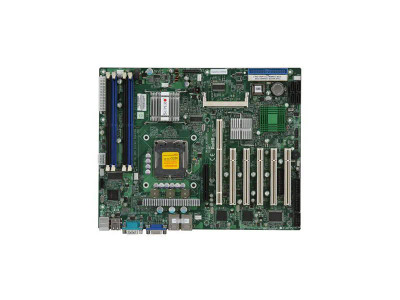

MBD-PDSMA+-O - SuperMicro PDSMA+ Socket LGA775 Intel 3000 Chipset ATX System Board Motherboard Supports Xeon 3200/3000 Series DDR2 4x DIMM
Details
Brand
SuperMicro
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
LGA 775
Supported CPU(s)
Intel Celeron D Processor, Intel Core2 Quad Processor, Intel Pentium D Processor, Intel Pentium Processor Extreme Edition, Intel Xeon Processor
FSB Speed (Maximum)
1066 MHz
Supported CPU Technologies
Dual Core, Enhanced Intel Speedstep Technology, Execute Disable Bit, Idle States, Intel 64 Architecture, Intel Virtualization Technology, Quad Core, Thermal Monitoring Technologies
Chipset
Intel 3000
South Bridge Chipset
Intel ICH7R
Number of Memory Slot(s)
4
Supported Memory Standard(s)
PC2-4300 (DDR2-533), PC2-5300 (DDR2-667)
Maximum Installed Memory
8GB GB
Expansion Slots
PCI Express x8, PCI-E x8, PCI-X
Expansion Slots Details
5x 32-bit 33MHz PCI (5V) slots, 1x 64-bit PCI-X 133MHz Slot, 1 (x8) PCI-Express Slot
Storage Controller
(ATA-6) Ultra ATA/100, Floppy Connector, SATA 3.0 Gbps
Network
Gigabit Ethernet
Connectors/Ports
Parallel, PS/2, PS/2 Keyboard, PS/2 Mouse, RJ-45, TPM Header, USB 2.0
Features
BIOS:, PECI, PCI 2.2, SMBIOS 2.3, DMI 2.3 support, ACPI 1.0 (limited), Plug and Play (PnP), USB Keyboard support, Power Configurations:, ACPI Power Management, Wake-On-LAN (WOL) Header, Wake-On-Ring (WOR) Header, Main Switch Override Mechanism, Inter
