Description

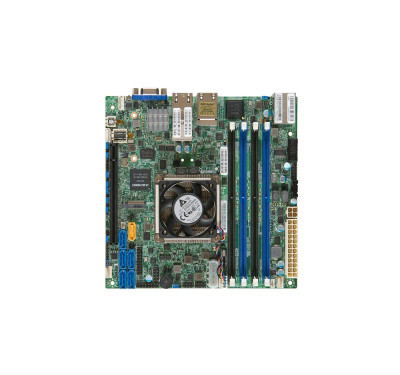

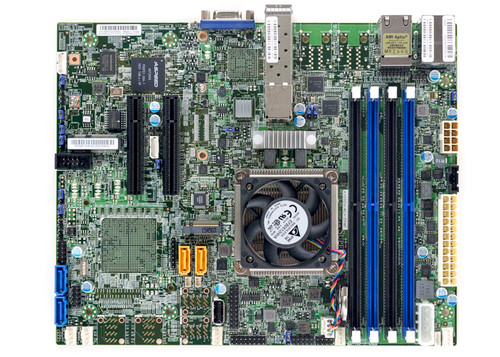

MBD-X10SDV-16C-TLN4F - SuperMicro X10SDV-16C-TLN4F Socket FCBGA1667 System on Chip Chipset Mini-ITX System Board Motherboard Supports Xeon D-1587 DDR4 4x DIMM
Details
Brand
SuperMicro
Weight
8.00 LBS
Ethernet Standard
10 Gigabit Ethernet
Wi-Fi LAN Status
No
Memory Technology
DDR4 SDRAM
RAM Genre
RDIMM,UDIMM
Socket Type
Socket BGA-1667
Bluetooth Status
No
Quantity of Processor Supported
1
Supported Processor
Xeon D
Built-in Processor Vendor
Intel
Built-in Processor Type
Xeon
Built-in Processor Model
D-1581
Built-in Processor Speed
1.8 GHz
Built-in Processor Core
Hexadeca-core (16 Core)
Quantity of Memory Slots
4
Maximum Memory
128 GB
Controller Type
Serial ATA/600
RSTe (Specefic for Intel)
Yes
Raid Supported
Yes
Raid Levels
0,1,5,10
Onboard Video
On-board Video Chipset
Graphics Controller Vendor
ASPEED
Graphics Controller Model
AST2400 BMC
Audio Channels
5.1
Near Field Communication (NFC)
No
Quantity of Ethernet LAN Ports (RJ-45/SFP/SFP+)
5
VGA Port
Yes
Quantity of Expansion Slots
2
Quantity of USB Ports
6
Thunderbolt Port
No
Ethernet Port (RJ-45)
Yes
Quantity of PCI Express Slots
1
Quantity of PCI Express x16 Slots
1
Both eSata/USB
Yes
Quantity of USB 3.0 Ports
2
S/PDIF Port
Yes
Quantity of SATA Interfaces
6
Quantity of M.2 Interfaces
1
Quantity of Onboard USB Ports
6
Quantity of Onboard USB 3.0 Ports
2
Onboard S/PDIF Header
Yes
Quantity of USB 2.0 Ports
4
Height
6.7 Inches
Width
6.7 Inches
Form Factor
Mini ITX
Compliance Standards
RoHS
Assembly Required
Yes
Eco Friendly
Yes
