Description

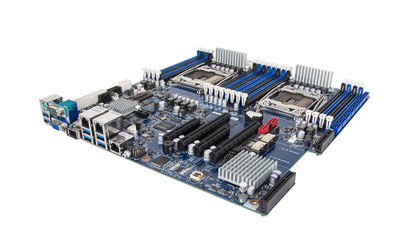

MD60-SC0 - Gigabyte Technology Socket Dual LGA 2011-3 Xeon E5-2600 V3/ V4 Processors Support Extended E-ATX Intel C612
Details
Brand
Gigabyte Technology
Weight
8.00 LBS
Chipset Manufacturer
Intel
Total Processor Supported
2
Processor Socket
Socket LGA 2011-v3
Processor Supported
Xeon
Number of Memory Slots
16
Memory Form Factor
DIMM, RDIMM, LRDIMM
Maximum Memory
64 GB
Memory Speed Supported
2.13 GHz, 1.87 GHz, 1.60 GHz
Memory Technology
DDR4 SDRAM
Controller Type
Serial ATA/600, Serial Attached SCSI (SAS)
RAID Supported
Yes
RAID Levels
0, 1, 5, 10
Onboard Video
On-board Video Chipset
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Audio Channels
No
Gigabit Ethernet
Yes
Number of Total Expansion Slots
5
Total Number of PCI Express Slots
5
Number of PCI Express x8 Slots
3
Number of PCI Express x16 Slots
2
Total Number of USB Ports
6
Number of USB 3.0 Ports
6
VGA
Yes
Number of SATA Interfaces
2
Number of SAS Interfaces
12
Number of mSATA Interfaces
1
Total Number of Onboard USB Ports
1
Number of Onboard USB 3.0 Ports
1
Form Factor
Extended ATX
Width
12
Depth
13
Environmentally Friendly
Yes
Environmental Certification
WEEE, China RoHS
Country of Origin
Taiwan
