Description

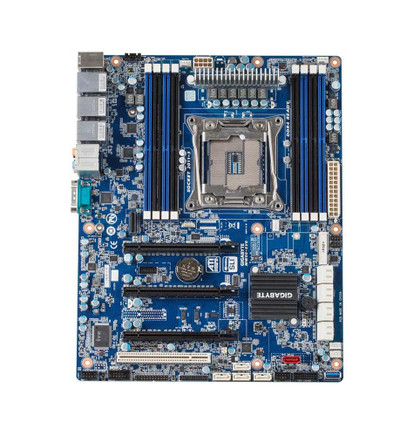

MW50-SV0 - Gigabyte Technology Socket LGA 2011-3 Intel C612 Chipset Xeon E2600 V3 /E5-1600 V3 /E5-2600 V4 /E5-1600 V4 Processors Support DDR4 8x DIMM 8x
Details
Brand
Gigabyte Technology
Weight
8.00 LBS
Chipset Manufacturer
Intel
Total Processor Supported
1
Processor Socket
Socket LGA 2011-v3
Processor Supported
Xeon, Core i7
Number of Memory Slots
8
Memory Form Factor
DIMM, RDIMM, LRDIMM
Maximum Memory
64 GB
Memory Speed Supported
2.13 GHz, 1.87 GHz, 1.60 GHz
Memory Technology
DDR4 SDRAM
Controller Type
Serial ATA/600, mSATA
RAID Supported
Yes
RAID Levels
0, 1, 5, 10
Onboard Video
No
Audio Channels
7.1
Gigabit Ethernet
Yes
Number of Total Expansion Slots
5
Total Number of PCI Express Slots
4
Number of PCI Express x4 Slots
1
Number of PCI Express x16 Slots
3
Total Number of USB Ports
8
Number of USB 3.0 Ports
4
S/PDIF
Yes
VGA
No
Number of SATA Interfaces
15
Number of mSATA Interfaces
1
Total Number of Onboard USB Ports
3
Number of Onboard USB 3.0 Ports
2
Onboard S/PDIF Header
Yes
Form Factor
ATX
Width
12
Depth
9.6
Environmentally Friendly
Yes
Environmental Certification
WEEE, China RoHS
Country of Origin
China
