Description

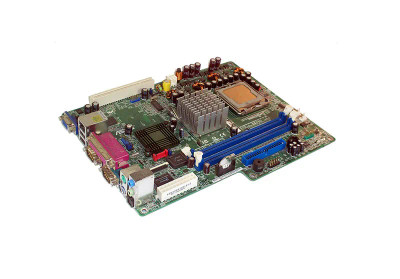

P5GD1-BVM/S - Asus Motherboard Socket 775
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
LGA 775
Supported CPU(s)
Intel Celeron Processor, Intel Pentium 4 Processor
FSB Speed (Maximum)
800 MHz
Supported CPU Technologies
Hyper-Threading Technology
Chipset
Intel 915P Express
South Bridge Chipset
Intel ICH6R
Number of Memory Slot(s)
4
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC-2700 (DDR-333), PC-3200 (DDR-400)
Maximum Installed Memory
4 GB
Expansion Slots
PCI-E x1, PCI-E x16
Expansion Slots Details
1 x PCI Express x16 slot for discrete graphics card, 3 x PCI Express x1, 3 x PCI
Storage Controller Details
Intel® ICH6R South Bridge, 1 x UltraDMA 100/66/33, 4 x Serial ATA with Intel® Matrix Storage Technology with RAID 0, 1 support, ITE IDE RAID controller, 2 x UltraDMA 133/100/66 with JBOD, RAID 0, 1, 0+1 support
Audio Controller
Realtek ALC861
Connectors/Ports
24-pin ATX Power Connector, Audio-In, Audio-Out, Chassis Fan Connector, CPU Fan Connector, Parallel, Serial, USB 1.1, USB 2.0
Connectors/Ports Details
Back Panel I/O Ports, 1 x Parallel, 1 x Serial, 1 x S/PDIF Output, 1 x PS/2 Keyboard, 1 x PS/2 Mouse, 1 x 8-Channel Audio I/O, 1 x RJ45, 4 x USB 2.0/1.1, , Internal I/O Connectors, 2 x USB 2.0 connectors supports additional 4 USB 2.0 ports, CPU / Cha
