Description

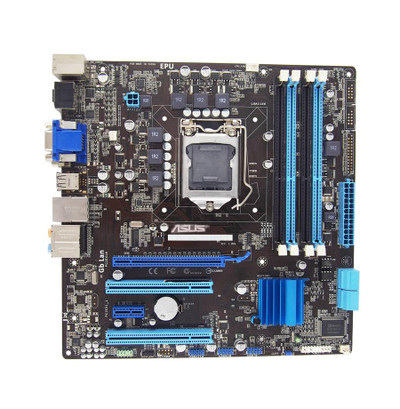

P7H55-M/CG5275/DP - Asus Socket LGA 1156 Intel H55 Express Chipset Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR3 4x DIMM 6x
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
Micro ATX
CPU Socket Type
LGA 1156
Supported CPU(s)
Intel Core i3 Processor, Intel Core i5 Processor, Intel Core i7 Processor, Intel Pentium Processor
Supported CPU Technologies
Intel Turbo Boost Technology
Chipset
Intel H55 Express
Number of Memory Slot(s)
4
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-14900 (DDR3-1866), PC3-8500 (DDR3-1066)
Maximum Installed Memory
16 GB
Expansion Slots
PCI-E 2.0 x1, PCI-E 2.0 x16
Expansion Slots Details
1 x PCIe 2.0 x16, 2 x PCIe 2.0 x1 (2.5GT/s, gray slots), 1 x PCI
Storage Controller
SATA 3.0 Gbps
Audio Controller
Realtek ALC887
Network
Gigabit Ethernet
Connectors/Ports
Audio-In, Audio-Out, Chassis Fan Connector, CPU Fan Connector, PS/2 Keyboard, PS/2 Mouse, RJ-45, USB 1.1, USB 2.0
Connectors/Ports Details
Back Panel I/O Ports, 1 x PS/2 Keyboard/Mouse Combo port, 1 x D-Sub, 1 x HDMI, 1 x S/PDIF Out (Optical), 1 x LAN(RJ45) port, 6 x USB 2.0/1.1, 3 x Jack (8-channel) Audio I/O, , Internal I/O Connectors, 3 x USB connectors support additional 6 USB ports
