Description

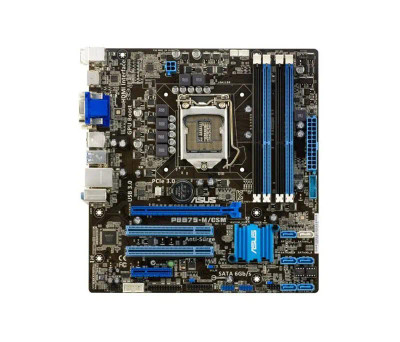

P8B75-M - Asus Intel B75 Core i7/ i5/ i3 Processors Support PCI Express SATA USB3 0 Socket LGA1155 micro-ATX Motherboard
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
Micro ATX
CPU Socket Type
LGA 1155
Supported CPU(s)
Intel Celeron Processor, Intel Core i3 Processor, Intel Core i5 Processor, Intel Core i7 Processor, Intel Pentium Processor
Supported CPU Technologies
Intel Turbo Boost Technology
Chipset
Intel B75 Express
Number of Memory Slot(s)
4
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-16000 (DDR3-2000), PC3-8500 (DDR3-1066)
Maximum Installed Memory
32GB
Expansion Slots
PCI-E 2.0 x16, PCI-E 2.0 x4, PCI-E 3.0 x16
Expansion Slots Details
1 x PCIe 3.0/2.0 x16, 1 x PCIe 2.0 x4 , 2 x PCI
Storage Controller
SATA 3.0 Gbps, SATA 6.0 Gbps
Storage Controller Details
5 x SATA 3Gb/s port(s), blue, 1 x SATA 6Gb/s port(s), gray
Audio Controller
VIA VT1708S
Network
Gigabit Ethernet
Connectors/Ports
Audio-In, Audio-Out, Chassis Fan Connector, CPU Fan Connector, DVI-D, HDMI, Parallel, PS/2 Keyboard, PS/2 Mouse, RJ-45, TPM Header, USB 2.0
Connectors/Ports Details
Internal I/O Connectors>, 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x TPM connector(s) , 1 x COM port(s) connector(s), 1 x SATA 6Gb/s connector(s)
