Description

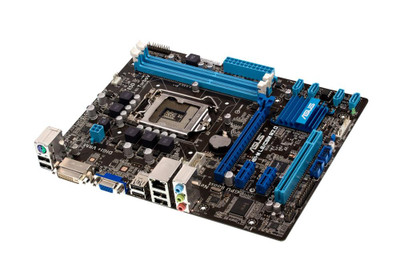

P8H61-MLE/CSM-R20 - Asus Intel H61 B3 Chipset 2200MHz DDR3 8-Ch Audio Gigabit Lan USB 2.0 Socket 1155 ATX Motherboard
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
Micro ATX
CPU Socket Type
LGA 1155
Supported CPU(s)
Intel Celeron Processor, Intel Core i3 Processor, Intel Core i5 Processor, Intel Core i7 Processor, Intel Pentium Processor
Supported CPU Technologies
Intel Turbo Boost Technology
Chipset
Intel H61 Express
Number of Memory Slot(s)
2
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-14900 (DDR3-1866), PC3-16000 (DDR3-2000), PC3-8500 (DDR3-1066)
Maximum Installed Memory
16 GB
Expansion Slots
PCI-E 2.0 x1, PCI-E 2.0 x16, PCI-E 3.0 x16
Expansion Slots Details
1 x PCIe 3.0/2.0 x16 *1, 2 x PCIe 2.0 x1, 1 x PCI
Storage Controller
SATA 3.0 Gbps
Audio Controller
Realtek ALC887
Network
Gigabit Ethernet
Connectors/Ports
Audio-In, Audio-Out, Chassis Fan Connector, COM, CPU Fan Connector, PS/2 Keyboard, PS/2 Mouse, RJ-45, USB 2.0
Connectors/Ports Details
Back I/O Ports, 1 x PS/2 keyboard/mouse combo port(s), 1 x DVI, 1 x D-Sub, 1 x LAN (RJ45) port(s), 6 x USB 2.0, 3 x Audio jack(s), , Internal I/O Ports, 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x COM port(s) connector(s), 4
