Description

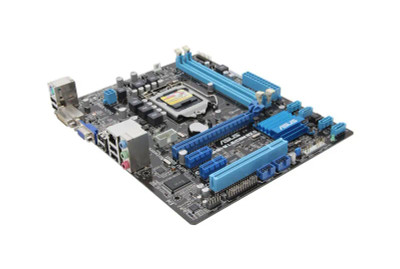

P8H61-MLE/CSMR2.0 - Asus P8H61-M LE R2.0 Socket LGA1155 Intel H61 Chipset Micro-ATX System Board Motherboard Supports 3rd/2nd Gen Core i7 / i5 / i3 / Pentium / Celeron Series DDR3 2x DIMM
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
Micro ATX
CPU Socket Type
LGA 1155
Supported CPU(s)
Intel Celeron Processor, Intel Core i3 Processor, Intel Core i5 Processor, Intel Core i7 Processor, Intel Pentium Processor
Supported CPU Technologies
Intel Turbo Boost Technology
Chipset
Intel H61 Express
Number of Memory Slot(s)
2
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-14900 (DDR3-1866), PC3-16000 (DDR3-2000), PC3-8500 (DDR3-1066)
Maximum Installed Memory
16 GB
Expansion Slots
PCI-E 2.0 x1, PCI-E 2.0 x16, PCI-E 3.0 x16
Expansion Slots Details
1 x PCIe 3.0/2.0 x16 *1, 2 x PCIe 2.0 x1, 1 x PCI
Storage Controller
SATA 3.0 Gbps
Audio Controller
Realtek ALC887
Network
Gigabit Ethernet
Connectors/Ports
Audio-In, Audio-Out, Chassis Fan Connector, COM, CPU Fan Connector, PS/2 Keyboard, PS/2 Mouse, RJ-45, USB 2.0
Connectors/Ports Details
Back I/O Ports, 1 x PS/2 keyboard/mouse combo port(s), 1 x DVI, 1 x D-Sub, 1 x LAN (RJ45) port(s), 6 x USB 2.0, 3 x Audio jack(s), , Internal I/O Ports, 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x COM port(s) connector(s), 4
