Description

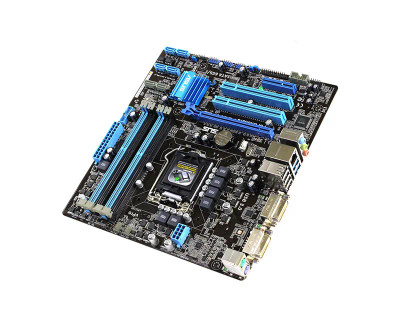

P8Q77-M2 - Asus Socket LGA1155 Intel Q77 Chipset Micro-ATX System Board Motherboard Supports Core i7 / i5 / i3 / Pentium / Celeron Series DDR3 4x DIMM
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
Micro ATX
CPU Socket Type
LGA 1155
Supported CPU(s)
Intel Celeron Processor, Intel Core i3 Processor, Intel Core i5 Processor, Intel Core i7 Processor, Intel Pentium Pro Processor
Supported CPU Technologies
Intel Turbo Boost Technology
Chipset
Intel Q77 Express
Number of Memory Slot(s)
4
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-8500 (DDR3-1066)
Maximum Installed Memory
32GB
Expansion Slots
PCI-E 2.0 x16, PCI-E 3.0 x16
Expansion Slots Details
1 x PCIe 3.0/2.0 x16 *1, 1 x PCIe x4, 2 x PCI
Storage Controller
SATA 3.0 Gbps, SATA 6.0 Gbps
Storage Controller Details
4 x SATA 3Gb/s port(s), blue, 2 x SATA 6Gb/s port(s), gray, Support Raid 0, 1, 5, 10, Supports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology *2
Audio Controller
VIA VT1708S
Network
Gigabit Ethernet
Connectors/Ports
8-pin 12V Power Connector, Audio-In, Audio-Out, Chassis Fan Connector, CPU Fan Connector, PS/2 Keyboard, PS/2 Mouse, RJ-45, Serial, TPM Header, USB 2.0, USB 3.1
Connectors/Ports Details
Internal I/O Connectors, 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s), 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s), 1 x COM port(s) connector(s), 2 x SATA 6Gb/s connector(s), 4 x SATA 3Gb/s connect
