Description

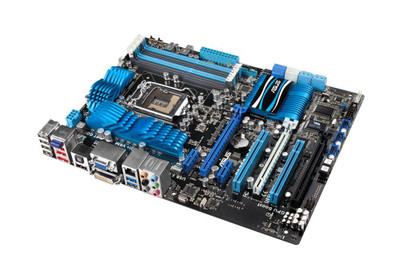

P8Z68-VPRO-PB-R - Asus Socket LGA 1155 Intel Z68 Chipset 2nd Generation Core i7 / i5 / i3 Processors Support DDR3 4x DIMM 2x SATA
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
LGA 1155
Supported CPU(s)
Intel Core i3 Processor, Intel Core i5 Processor, Intel Core i7 Processor
Supported CPU Technologies
Intel Turbo Boost Technology
Chipset
Intel Z68 Express
Number of Memory Slot(s)
4
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-14900 (DDR3-1866), PC3-8500 (DDR3-1066)
Maximum Installed Memory
32 GB
Expansion Slots
PCI-E 2.0 x16
Expansion Slots Details
2 x PCIe 2.0 x16 (x16 or dual x8), 1 x PCIe 2.0 x16 (x4 mode, black) *1, 2 x PCIe x1, 2 x PCI
Storage Controller
SATA 3.0 Gbps, SATA 6.0 Gbps
Audio Controller
Realtek ALC892
Network
Gigabit Ethernet
Connectors/Ports
Chassis Fan Connector, CPU Fan Connector, D-Sub, DVI, HDMI, PS/2 Keyboard, PS/2 Mouse, RJ-45, USB 2.0, USB 3.1
Connectors/Ports Details
Back I/O Ports, 1 x Bluetooth module(s), 1 x DVI, 1 x D-Sub, 1 x HDMI, 1 x eSATA 3Gb/s, 1 x LAN (RJ45) port(s), 2 x USB 3.1 Gen 1, 6 x USB 2.0, 1 x Optical S/PDIF out, 6 x Audio jack(s), , Internal I/O Ports, 1 x USB 3.1 Gen 1 connector(s) support(s)
