Description

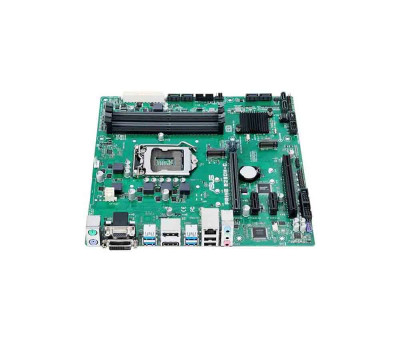

90MB0SQ0-M0EAYC - Asus Prime B250M-C/CSM Socket LGA1151 Intel B250 Chipset Micro-ATX System Board Motherboard Supports Core i7/i5/i3/Pentium/Celeron DDR4 4x DIMM
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
Micro ATX
CPU Socket Type
LGA 1151
Supported CPU(s)
Intel Celeron Processor, Intel Core i3 Processor, Intel Core i5 Processor, Intel Core i7 Processor, Intel Pentium Processor
Chipset
Intel B250
Number of Memory Slot(s)
4
Supported Memory Standard(s)
PC4-17000 (DDR4-2133), PC4-19200 (DDR4-2400)
Maximum Installed Memory
64 GB
Expansion Slots
PCI, PCI-E 2.0 x1, PCI-E 2.0 x16, PCI-E 3.0 x1, PCI-E 3.0 x16
Storage Controller
SATA 6.0 Gbps
Audio Controller
Realtek ALC887
Network
Gigabit Ethernet
Connectors/Ports
Audio-In, Audio-Out, Chassis Fan Connector, CPU Fan Connector, DVI-D, HDMI, PS/2 Keyboard, PS/2 Mouse, RJ-45, USB 2.0, USB 3.1
Connectors/Ports Details
Back I/O Ports, 1 x PS/2 keyboard (purple), 1 x PS/2 mouse (green), 1 x DVI-D, 1 x D-Sub, 1 x DisplayPort, 1 x HDMI, 1 x LAN (RJ45) port(s), 4 x USB 3.1 Gen 1 (blue) , 2 x USB 2.0 , 3 x Audio jack(s), , Internal I/O Ports, 1 x MONO out header *3, 1 x
Warranty Information
8
