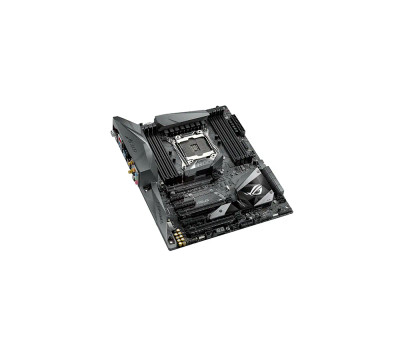

90MB0U50-M0EAY0 - Asus ROG Strix X299-E Gaming Socket LGA2066 Intel X299 Chipset ATX System Board Motherboard Supports Core X-Series DDR4 8x DIMM
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
LGA 2066
Supported CPU(s)
Intel Core X-Series Processor
Chipset
Intel X299
Number of Memory Slot(s)
8
Supported Memory Standard(s)
PC4-17000 (DDR4-2133), PC4-19200 (DDR4-2400), PC4-21333 (DDR4-2666), PC4-23466 (DDR4-2933), PC4-25600 (DDR4-3200)
Maximum Installed Memory
256 GB
Expansion Slots
PCI-E 2.0 x16, PCI-E 3.0 x16
Storage Controller
SATA 6.0 Gbps
Network
Gigabit Ethernet
Connectors/Ports
Audio-In, Audio-Out, Chassis Fan Connector, COM, CPU Fan Connector, PS/2 Keyboard, PS/2 Mouse, RJ-45, TPM Header, USB 2.0, USB 3.0
Connectors/Ports Details
Back I/O Ports, 1 x LAN (RJ45) port(s), 2 x USB 3.2 Gen 2 Type-A + USB Type-CTM, 4 x USB 3.2 Gen 1 (blue), 2 x USB 2.0 (one port can be switched to USB BIOS FlashBack¢), 1 x Optical S/PDIF out, 5 x Audio jack(s), 1 x USB BIOS FlashBack¢ Button(s),
Warranty Information
8
