Description

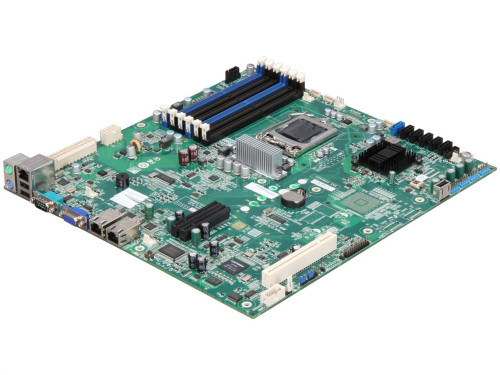

S5501WGM3NR - Tyan MotherboardIntel 3420 DDR3 SdRam Socket 1156 Extended-ATX Server Motherboard
Details
Brand
tyan
Weight
8.00 LBS
Chipset Manufacturer
Intel
Total Processor Supported
1
Processor Socket
Socket H LGA-1156
Processor Supported
Xeon Dual-Core, Xeon Quad-core
Number of Memory Slots
6
Maximum Memory
32 GB
Memory Speed Supported
1.33 GHz, 1.07 GHz, 800 MHz
Memory Technology
DDR3 SDRAM
Controller Type
Serial Attached SCSI (SAS), Serial ATA/300
RAID Supported
Yes
RAID Levels
0, 1, 5, 1+0
Onboard Video
On-board Video Chipset
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2050
Gigabit Ethernet
Yes
Number of Total Expansion Slots
3
Total Number of PCI Express Slots
2
Number of PCI Express x8 Slots
2
Total Number of USB Ports
2
Number of SATA Interfaces
6
Number of SAS Interfaces
2
Total Number of Onboard USB Ports
4
Form Factor
Extended ATX
Width
12
Depth
13
Environmentally Friendly
Yes
Environmental Certification
RoHS-6
