Description

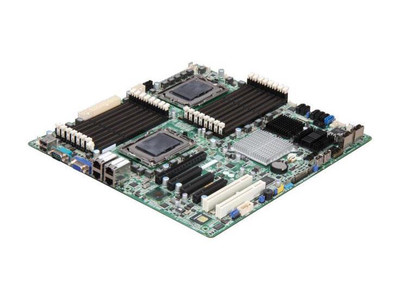

S8230WGM4NR - Tyan S8230 Socket G34 AMD SR5690 + SP5100 Chipset AMD 45nm 8-Core/12-Core Opteron 6100 Series Processors Support DDR3 16 xDIMM
Details
Brand
tyan
Weight
8.00 LBS
Chipset Manufacturer
AMD
Total Processor Supported
2
Processor Socket
Socket G34 LGA-1944
Processor Supported
Opteron Dodeca-core, Opteron Octa-core
Number of Memory Slots
16
Maximum Memory
128 GB
Memory Speed Supported
1.33 GHz, 1.07 GHz, 800 MHz
Memory Technology
DDR3 SDRAM
Controller Type
Serial Attached SCSI (SAS), Serial ATA/300
RAID Levels
0, 1, 5, 1+0
Onboard Video
On-board Video Chipset
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2050
Gigabit Ethernet
Yes
Number of Total Expansion Slots
7
Total Number of PCI Express Slots
4
Number of PCI Express x8 Slots
3
Number of PCI Express x16 Slots
1
Total Number of USB Ports
2
VGA
Yes
Number of SATA Interfaces
6
Number of SAS Interfaces
2
Total Number of Onboard USB Ports
4
Form Factor
Extended ATX
Width
12
Depth
13
Environmentally Friendly
Yes
Environmental Certification
RoHS
